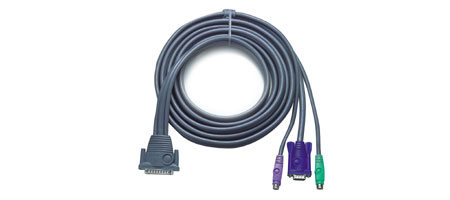

Aten MasterView Pro 10' PS/2 Cable
2L1603P
CS1004
UPC 672792105081
EAN 0672792105081
| Function | 2L1603P |
| CPU Connectors | |
| Keyboard | 6 pin mini-DIN Male |
| Monitor | 15 pin HDB Male |
| Mouse | 6 pin mini-DIN Male |
| Dimensions | |
| Length | 10 |
| KVM Side Connections | |
| Keyboard, Video, Mouse | DB-25 Male |
UPC 672792105081
EAN 0672792105081
Question: Please for DB-25 Male ATEN 2L1603P pin description for DB-25 male
Answer: The DB-25 Male is the 25-pin terminated end that would connect to your supported ATEN switch. The pin layout would likely be a proprietary layout set by ATEN's engineers.
Answer: The DB-25 Male is the 25-pin terminated end that would connect to your supported ATEN switch. The pin layout would likely be a proprietary layout set by ATEN's engineers.
