SmartAVI Signage-4K Media Player with 32GB SSD & Software
4K-SNCL-V32G
Save $397.18

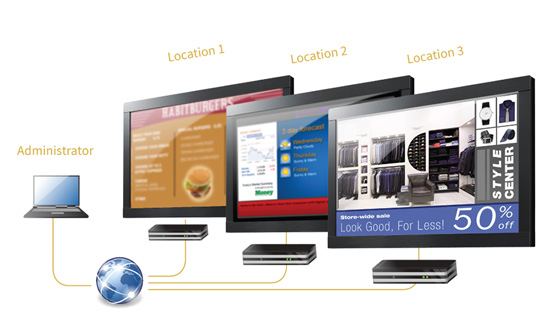

SmartAVI's Signage4K (4K-SNCL-V32G) gives users incredible control over their 4K Ultra HD sources to create stunning digital signage displays. Routing various sources to different screens on the fly is easy, and users can even select unique screens configurations with no scaling required. As 4K content becomes more and more prevalent, users will need to be able to route and manage that content in any way they see fit, and the Signage-4K from SmartAVI provides that userfriendly control.
the Signage4K digital signage controller is 4K ready. The controller supports resolutions up to 4096x2160 via HDMI or DisplayPort, and that means it delivers four times the pixel count of regular 1080p HD video (1920x1080). Users will be amazed by the incredible visual clarity, detail and realism they get from Signage4K.
4K-SNCL-V32G Features:
- Video Input: 1x HDMI/eDP/LVDS/DisplayPort
- Display Resolution
- HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- eDP with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
- LVDS with max. resolution 1920 x 1200 @ 60 Hz
- DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
- Compatibility with your favorite media formats natively: Quicktime, MPEG4, PowerPoint, Excel, Flash, RSS, HTML5 Widgets, PDF, JPG, GIF, and more
- Connect to your player through IP with SignageManager
- Divide display to show multiple media formats at once
- Video or Looping Slideshows To Your Static Signage Unique: Make It Fit Your Brand With Fully Customizable Templates
- Fully Automatic: Your Signage Can Change Automatically For Promotions, Different Times of Day, or Special Events
- Monetizable: Make Even More Profits By Selling Advertising Space On Your Display
- Flexible: Change Videos, Add New Items, Do Promotions On The Fly
- Intuitive: It's Plug And Go So You Can Install It In A Day
4K-SNCL-V32G Applications:
- Malls
- Directory and Information Display
- Corporate Lobbies
- Salons
- Schools, Colleges, and Universities
- Restaurants
- House of Worship / Churches
- Elevators
4K-SNCL-V32G Specifications:
| Hardware Specifications | |
| CPU | CPU Intel Socket 1150 for 4th Generation Core i5 Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0 |
| Memory | 2 x SO-DIMM, Max. 4GB, DDR3 1600/1333/1066 MHz Memory |
| Chipset | Intel 945GC & 1CH7 |
| Audio | 8-Channel High Definition Audio CODEC |
| I/O Control | SMSC LPC47 M997 based Legacy I/O controller for serial, parallel, and PS/2 ports |
| LAN Support | ealtek 8111G, 1 x Gigabit LAN Controller(s) |
| Peripheral Interfaces | USB 3.0 port(s) and USB 2.0 port(s) 1 x DisplayPort 1 x HDMI 2 x LAN (RJ45) port(s) 4 x USB 3.0 2 x Audio jack(s) 1 x DC power connector(s) |
| Video Input | 1x HDMI/eDP/LVDS/DisplayPort |
| Hard Drive | SanDisk Ultra SDSSDH-120G-G25 2.5" 120GB SATA II Internal Solid State Drive (SSD) |
| Operating System | OS Embedded Linux |
| Dimensions | 2.75"H x 9.68"W x 9.562"D |
| Supported Media | |
| Media Supported | Video (AVI, MPEG1, MPEG2, MPEG4, WMV, FLA, DIVX) Flash (SWF) Still Images (JPEG, GIF, BMP, PNG) WebPages (URL) Adobe Acrobat (PDF) PowerPoint (PPT) Audio (MP3, WMA) News (RSS) |
| Video format | 1H264, MPEG1/2/4, VC1, AVS, MJPG at 1080p30, VP6, VP7, VP8, RV, Theora, WMV9 at DVD resolutions |
| Audio Format | MP3 |
| Image Format | JPEG, BMP,PNG,GIF |
| Scrolling Message (Ticker) | Horizontal with Adjustable speed, font and background color |
| Display Resolution | - HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - eDP with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz - LVDS with max. resolution 1920 x 1200 @ 60 Hz - DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz |
UPC 813280015974
EAN 0813280015974
