SmartAVI SignWall-4K Media Player with 120GB SSD, 8Gb Ram & Software

4K-SVWP-120G7S

$5,299.00$4,129.09
Save $1,169.91
FREE Shipping on orders over $100

The Highly Customizable SmartAVI SignWall-4K (4K-SVWP-120G7S) Video Wall and Digital Signage Controller that Delivers Full 4K Ultra HD Resolution with Support for Multiple Streams of Real Time Video Content. SignWall-4K gives users incredible control over their 4K Ultra HD sources for both video walls and digital signage. Routing various sources to different screens on the fly is easy, and users can even select unique screens configurations with no scaling required.

4K-SVWP-120G7S Features

  • Supports 4K Ultra HD, 4K Cinema, and 2K Video
  • Video Output: 4x UHD HDMI + 1x Mini DisplayPort
  • Video Input: HDMI, DVI, YPbPr, S-Video, CVBS
  • Includes Video Capture to Display Live Video Feeds, Including Web Cams
  • Controls up to Four Screens
  • Schedules Automatic Content Changes
  • Fully Customizable Display Options and Preconfigured Templates
  • Potential for Selling Ad Space and Bringing In Extra Revenue
  • Full Emulation at Every Computer
  • Plug-and-Play for Quick and Easy Installation
  • Compatibility with your favorite media formats natively: HD Video (MPEG/AVI), Live Capture Video, Excel, PowerPoint, PDF, HTML, HTML5 Widgets, Flash, QuickTime, RSS News Feeds, Multi-Layout Capabilities, Images (JPEG/GIF), Image Backgrounds

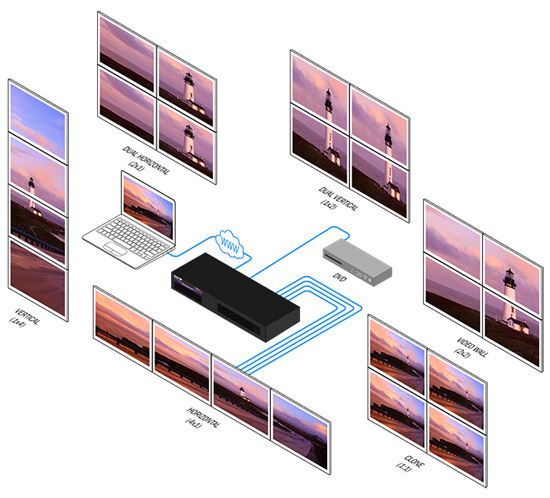

4K-SVWP-120G7S Application Diagram

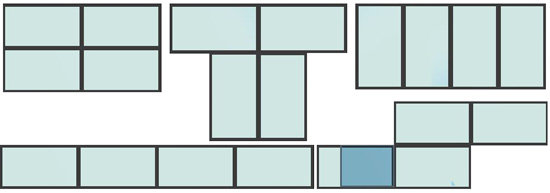

4K-SVWP-120G7S Possible Layouts

Applications

  • Airports
  • Malls
  • Control Rooms
  • Schools, Colleges, and Universities
  • Mass Video Conferencing
  • Casinos
  • Corporate Lobbies
  • Restaurants

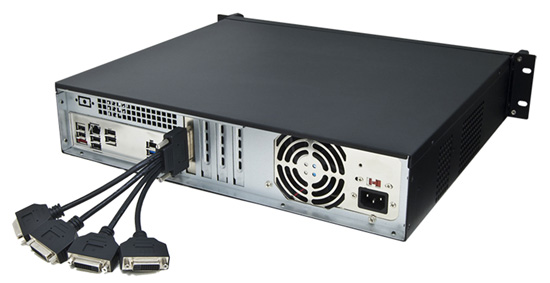

4K-SVWP-120G7S Unit Rear

4K-SVWP-120G7S Specifications

Video Specifications
GPUAMD Radeon HD7750
GPU Core Clock800Mhz core clock
Video Memory2GB GDDR5
Memory Clock / Bandwith1125Mhz GDDR5 (128-bit)
APIs SupportedOpenGL 4.2 / OpenCL 1.2 / DirectX 11.1
BUSPCI Express 3.0 compliant, x16
CoolerFAN sink Cooler (Single slot)
Board SizeFull Height, Half length size
Display Output4 x UHD HDMI 4K Ports (Active 3840 x 2160 per port dongle) + 1 Mini Display Port V1.2
HDMI ConnectivityUp to 10M tested
Maximum Resolution- 7680 x 4320 resolution (Landscape) (4* 3840 x 2160 UHD HDMIs/monitors) 8K Display
- 3840 x 8640 resolution (Portrait) (4* 3840 x 2160 UHD HDMIs/Monitors rotate)
- 19200 x 2160 resolution Surround View (Landscape) (5* 3840 x 2160 UHD HDMIs/monitors)
Audio InterfaceStereo 3.5mm Female, SPDIF
Other Interfaces
USB(2) USB 2.0, (2) USB 3.0
FirewireIEEE 1394a
PowerInternal 100-240 VAC, 50-60 HZ, 500 Watts
NetworkRJ-45 Gigabit
 Dimensions2U (3.5")H x 17"W x 15"D
 Environmental
Operating Temperature35° F to 96° F
Storage Temperature-20° F to 140° F
 Warranty1 Year
Live Capture Tech Specs
Live Capture HD Input
(Features)
1080p/60 Hz
  • Can capture HDMI, DVI, YPbPr
  • Capture LPCM audio signal via HDMI
  • Can switch signal dynamically, DVI/HDMI, YPbPr
  • Compatible with CVBS and S-Video
  • Supports automatic detection of input video format, automatic detection of the valid area of video
  • Supports for multi-stage image zoom and provides with three scales for image aspect ratio
  • Supports color adjustment, it can adjust image brightness, contrast, hue, saturation, Gamma; also R, G, B brightness and contrast can be adjusted separately
Hardware Color
Conversion
Output RGB24, RGB32, YUY2, UYVY, I420
De-InterlaceVertical Blend and Motion Adaptive
System Specifications
MotherboardIntel BOXDP67DEB3 LGA 1155 Intel P67 SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
ProcessorIntel Core i7-2600 Sandy Bridge 3.4GHz (3.8GHz Turbo Boost) LGA 1155 95W Quad-
Core Desktop Processor
RAMG.SKILL Ripjaws X Series 4GB (2 x 2GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3
10666) Desktop Memory
StorageSanDisk Ultra SDSSDH-120G-G25 2.5" 120GB SATA II Internal Solid State Drive (SSD)
Operating SystemWindows 7
Onboard VideoIntel HD Graphics 2000 PCI-E
Onboard Memory3GB DDR3, 160 MHz of working frequency, 32bit of
bit wide
Input Interface1 x HDMI interface(DVI)
1 x DB9 interface (to YPbPr, S-Video, CVBS,1 unbalanced stereo audio line in)
Maximum Sampling
Rate
CVBS: 54MHz (4x Oversampling) HDMI/DVI: 225MHz
YPbPr Input Mode480i, 576i, 480p, 576p, 720p, 1080i,1080p
DVI Input Mode480i, 576i, 480p, 576p, 720p, 1080i,1080p
HDMI Input ModeUp to HDMI 1.3 standard, support 36bit DeepColor
CVBS InputStandard PAL/NTSC
UPC / EAN Barcode icon
UPC 813280020626
EAN 0813280020626
