Avocent 4-port PS/2-USB Rack Mount KVM Switch Cables Included



Recommended replacement: Raritan CompuSwitch CS4R
Alternative options: Contact Us

The cost-efficient Avocent 4SV1000BND1-001 SwitchView KVM Switch provides PS/2 or USB connectivity for one user and 4 target devices.

The 4SV1000BND1 single-user switch has an on-screen display (OSD) and supports a 2048x1536 high video resolution that is ideal for graphical applications. With a 1U design, the compact Avocent SwitchView KVM does not compete for valuable rack space in SMB server rooms.

Plus, the 4SV1000BND1-001 KVM rack solution is flash upgradeable for fast and easy updates. The Avocent 4SV1000BND1 has a password protection feature which gives you the benefit of added security to your business-critical servers.

Avocent 4SV1000BND1-001 Features:

  • OSD - Simple control through an on-screen menu
  • Password Protection - Secure access is password protected
  • Flash Upgradeable - Convenient upgrades mean that the product never goes out of date
  • Hotkey Switching - Switch via keyboard sequence
  • Daisy Chain Auto-Initialization - Connect multiple units together without complicated configuration
  • Video Resolution - 2048x1536 video resolution supports the most demanding server room applications
  • 1U - Fits perfectly into a standard rack; does not use a large amount of valuable rack space
  • Combo Cables - Uses a three-in-one KVM cable that supports USB or PS/2 target devices
  • Programmable Auto-Scan - Customize scanning times between attached systems
  • USB and PS/2 System/Target and User Support - Supports PS/2 or USB peripherals to control a mix of PS/2 or USB user systems

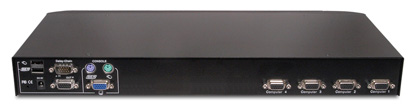

Avocent 4SV100BND1 Back View
Avocent SwitchView 4 Port DVI Switch Back View
(4SV1000 depicted here)

Avocent 4SV1000BND1-001 Package Content:

  • 1 4SV1000 4-port PS/2-USB KVM Switch
  • 4 CBL0029 Cables
  • 1 User Manual

Avocent 4SV1000BND1-001 Specifications:

Height 1.75 in. (4.45 cm)
Width 16.14 in. (41 cm)
Depth7.43 in. (18.9 cm)
Weight4.19 lbs. (1.9 kg)
Operating Temperature32 to 104 F (0 to 40 C)
Storage Temperature-4 to 140 F (-20 to 60 C)
Operating PowerAC 100 - 240VAC 50/60 Hz
Power Frequency50-60 Hz
Input PowerDC 9V
Supported Hardware
ComputersPC, Mac, Sun (with USB or PS/2)
Monitor2048 x 1536 maximum
PeripheralsUSB or PS/2 Keyboard/Mouse
VGA monitor
PC Ports4
Cables Included4 cable sets
Approved AgenciesFCC Class B, UL, cUL, ICES-003 Class B, CE, C-Tick, VCCI Class B
UPC / EAN Barcode icon
UPC 636430042145
EAN 0636430042145
