HDMI® connectors, single-head digital video, audio, and USB2.0 over 1GbE IP network.


Save $115.00
FREE Shipping on orders over $100


HDMI® connectors, single-head digital video, audio, and USB2.0 over 1GbE IP network.

ADDERLink ALIF1104T-US Overview

The ADDERLink® INFINITY 1104 is a high performance IP KVM extender that forms part of the ADDERLink INFINITY Range. This enables the relocation of critical computing hardware into a secure and temperature controlled environment away from the user work station; while maintaining a pixel-perfect desktop experience.



  • Perfect Digital Video, Real-Time Control
    • Using a spatially-lossless encoding system, with 1:1 pixel mapping, the ADDERLink INFINITY 1104 (ALIF1104) provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.
    • Standard IP Technology
      • Using standard IP technology allows a choice of CATx or fiber connections. Resilience is offered by the optional second network port which provides teaming facility for load balanced and critical systems.
    • Unlimited Extension Distances
      • Extension distance is not limited to a single 100 meter cable length. If you need to extend further, simply add a 1GbE network device to achieve an additional 100 meters, which can be repeated many times. Also fitted with SFP cages to accept fiber optic transceivers for much greater distances.
    • USB 2.0 with Class Control
      • Supports USB devices including graphics tablets, jog shuttles, joysticks and 3D explorers, alongside mass storage devices. For secure applications, the system can disable the use of non-HID devices, meaning there is no need to physically block USB ports to prevent the use of mass storage devices.
    • Flexible and Scalable Extender or Switch
      • Each ALIF1100 model can be configured as a simple extender or self-managed distributed KVM switch. Each receiver can see up to 16 sources and rapidly switch between them.
    • ADDERLink® INFINITY Matrix
      • With the addition of the ADDERLink® INFINITY Management (AIM) system, you can turn multiple point-to-point extenders into a scalable digital KVM matrix system that allows any workstation to link with any computer connected to the network.
    • EDID Management
      • Intelligent EDID management allows the true characteristics of the monitor to be passed back to the computer. This ensures perfect video display without additional configuration.
    • Plug and Play
      • ADDERLink INFINITY devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.
    • Redundant Network Operation
      • The units support network teaming allowing for full network redundancy and increased resilience for mission critical applications.
    • Digital Audio
      • The ALIF1100 models supports two channel digital audio input via USB and the digital video connector.
    • Touch Screen Support
      • Touch screen support including onscreen keyboard and floating launch button with configurable size which can be positioned anywhere on the screen
    • Support for Dithered Video
      • Allows analog or noisy video to pass through the system along with computer that dither the video to enhance the perceptive image quality. Some Mac computers use this technique.


ALIF1104T-US Technical Specifications

Video Information (For 1 Screen)
Maximum Resolution 2560 x1600
Frame Rate 60
Colour Depth 8 bpc

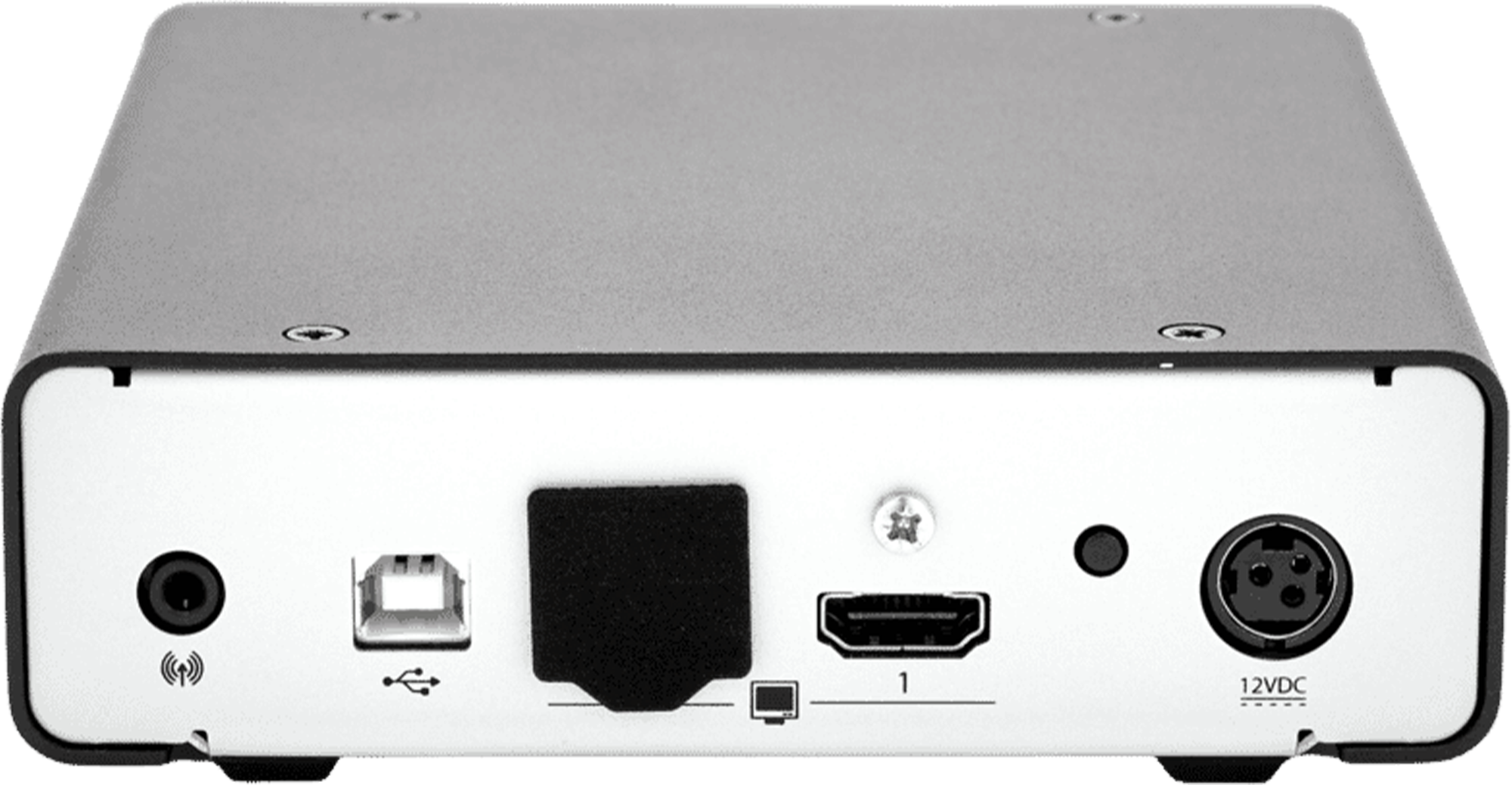

Computer Connections
USB B 1× 2.0 True Emulation, High Speed
USB A 1× 2.0 True Emulation
Link Ports
8p8c (RJ45) 1X
Serial Ports
Serial Standard RS232
Maximum Baud Rate 115,200
Serial Additional Information RS232 or other serial standards can be passed between the units to a maximum baud rate of 115,200 by using serial to USB converters
Audio Connections
Audio Type Analog/Digital
Channels 2
Audio In Ports 1× 3.5mm jack
Audio Direction Bi-directional
Size (bit) 16
Speed (kHz) 48
Additional Information Analog audio and audio via digital video connector is uni-directional. USB audio is bi-directional
Network Support
Bandwidth 1GbE
10/100 Support X
Operating Temperature 0 - 40 °C / 32 - 104 °F
Storage Temperature 0 - 40 °C / 32 - 104 °F
Operating Humidity 5% - 90% (non-condensing)
Storage Humidity -10% - 90% (non-condensing)
Altitude 2000m / 6561.68ft
Mean Time Between Failure (MTBF) 300,000 h
MTBF Standard Telcordia SR332 Issue 4 March 2016 Calculated @ 55C
Temperature Regulation Fanless
Power Source
12V 3-pin
Input Power Supply External Power Supply Unit
Power Consumption
Maximum Power (Watts) 18
Typical Power (Watts) 7
Physical Design
Construction Material Robust metal construction
U size 1
Width 136mm / 5.35in
Height 39mm / 1.54in
Depth 150mm / 5.91in
Weight 0.8kg / 1.76lb
OS Compatibility All known operating systems
System Requirements Does not support HDCP or CEC control
Approvals and Standards
Approvals CE, cULus - E476334, FCC, ICES, RCM, UKCA
Standards ANSI 63.4, EN/IEC 62368-1, EN55032 /CISPR 32, EN55035/CISPR 35, EN61000-3-2, EN61000-3-3, EN63000, FCC pt15B, ICES003
Other Cal Prop 65, China ROHS, EU REACH, UK REACH
