ADDERLink Portal R110 Transmitter - HDMI
ALPR110T-HM
Save $86.40

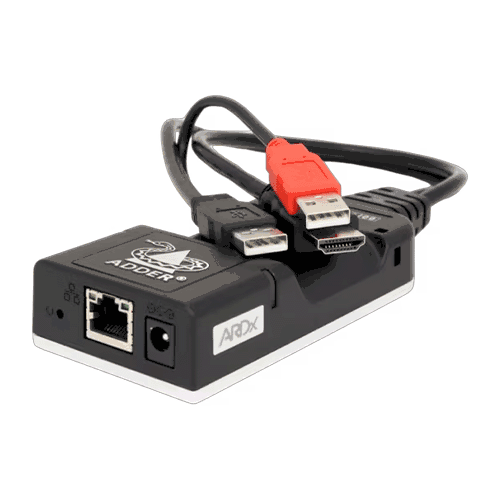

ADDERLink® Portal R110 (HDMI®)
KVM over IP that delivers seamless, secure remote PC access and control, and features both high-quality video and audio.
ALPR110T-HM Features
- Hardware remote KVM
- With HDMI connectivity and USB2.0 for keyboard, mouse and other HID devices. Unlike remote access software it operates out-of-band, enabling BIOS control of the target PC during boot and securely separating remote users from the local network.
- ARDx Enabled
- ADDERLink Portal is ARDx enabled and therefore requires ARDx Viewer (download from the ARDx Viewer product page), which provides a seamless user experience and powerful admin tools for managing connections and users.
- High quality audio and video
- Experience exceptional media streaming with HD 1920x1080 resolution at ultra-smooth 60Hz frame rates, 4:4:4 accurate color and 16-bit 44.1kHz PCM stereo audio. Fluid motion, pure color and clear text reproduction for image critical applications.
- Seamless User Experience
- Inherently low latency provides precision control as though you are operating the host PC directly. On a network with suitable capacity, up to eight users can access concurrently without performance degradation.
- Highly Secure
- Enterprise-grade security ensures your connection is safe. AES-256 encryption and RSA-2048 authentication offer the highest level of protection, trusted by security agencies and financial institutions worldwide.

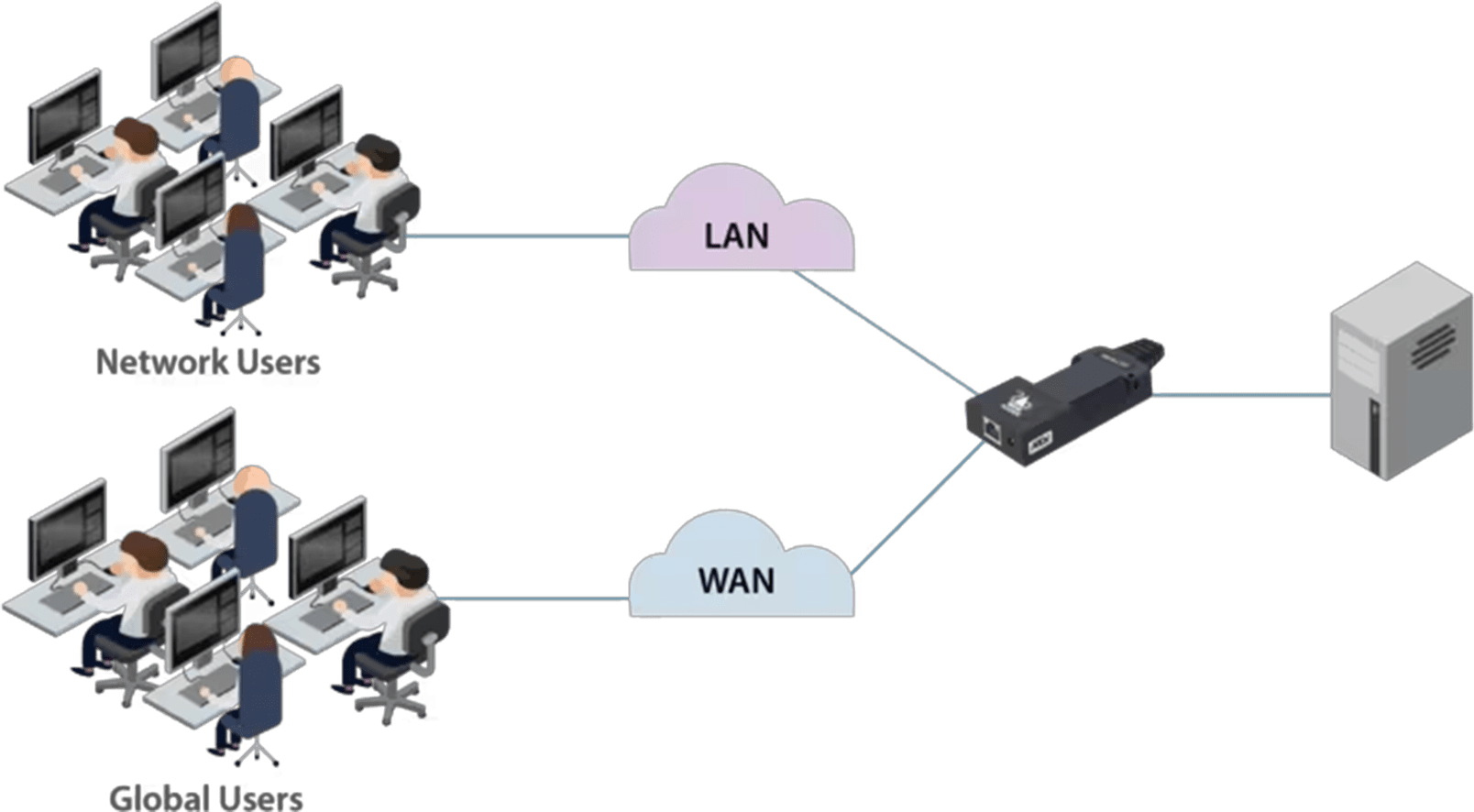

- Network Capability
- For critical performance applications, ADDERLink Portal is optimized for use over a Local Area Network (LAN). Wide Area Network (WAN) connectivity for remote internet access can be achieved through a firewall port or Virtual Private Network (VPN).
- Simple Installation
- The Zero U dongle form factor requires no rack space. USB power from the host PC means no bulky power supply or spare wall socket is required although an external supply can be used.
- Target any OS
- Unlike remote access via software, the ADDERLink Portal can control any PC with a KVM connection, regardless of the Operating System. Advantageous for installations where the OS may be considered legacy, or configuration change is prohibited.
ADDERLink® Portal R110 (HDMI®) Technical Specifications
| Video Information (1 Screen) | 1920 × 1080 @ 60 Hz, 8 bpc (HD 4:4:4 Chroma) |
| Video Additional Information | HD @ 60 Hz 4:4:4 chroma with dynamic frame-rate back-off under limited bandwidth conditions |
| Computer Connections | 1 × USB-A 2.0 (True Emulation HID Only) 1 × HDMI® |
| Link Ports | 1 × 8p8c (RJ45) |
| Audio Connections |
Type: Digital (PCM) Channels: 2 (Output only) Direction: Output only Resolution: 16-bit @ 44.1 kHz Input Port: 1 × USB |
| Network Support | Bandwidth: 1 GbE 10/100 Support: No |
| Power Source |
USB Power: 2 × USB-A (2 × 500 mA @ 5 V = 5 W) External Power Option: 5 V DC, 1 A (LPS) |
| Power Consumption |
Maximum Power: 5 W (1 A) Typical Power: 3 W BTU: 10.2 BTU/hr |
| Physical Design |
Construction Material: ABS and Aluminum (ZERO U Design) Rack Units (U): 0 U Width: 55 mm (2.2 in.) Height: 25 mm (1 in.) Depth: 110 mm (4.3 in.) Flying Lead Length: 300 mm (11.8 in.) Weight: 0.2 kg (0.4 lb) |
| Compatibility | Compatible with all known operating systems |
| Approvals & Standards |
Approvals: CE, ICES, UKCA Safety/EMC Standards: ANSI 63.4 • EN/IEC 62368-1 • EN55032 / CISPR 32 • EN55035 / CISPR 35 • EN61000-3-2 • EN61000-3-3 • EN63000 • FCC Part 15 B |
| Other Compliance | California Prop 65 • China RoHS • EU REACH • UK REACH |
| Packing Box Dimensions |
Length: 292 mm (11.5 in.) Width: 245 mm (9.6 in.) Depth: 55 mm (2.2 in.) Weight: 0.5 kg (1.1 lb) |
| What's Included |
1 × ADDERLink Portal R110 (HDMI®) unit 1 × Quick Start Guide |
| Ordering Information | ALPR110T-HM - ADDERLink Portal R110 (HDMI) KVM-over-IP device with USB and HDMI connectivity |
| Related Accessories (Sold Separately) | ADDER® Power Supply Unit 5 V DC 2.5 A |
