Avocent 4x42 KVM Switch



Replaced by: Avocent MX Matrix KVM
Alternative options: Contact Us

The Avocent AMX5020 KVM switch is a 4x42 appliance with a field-proven scalable architecture that easily accommodates additional servers and users. The AMX5020 matrix switch allows simultaneous access, supports multi-platform server environments and provides non-blocked access to servers. The AMX5020 switch includes the AMWorks Java-based system management tool.

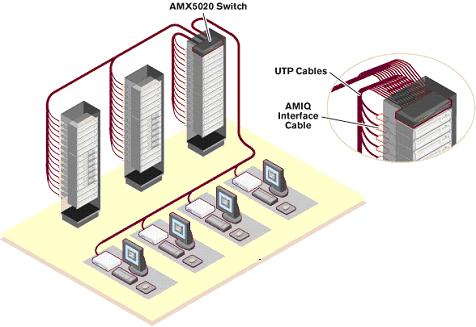

Avocent AMX5020 KVM Switch Diagram

Avocent AMX5020 KVM Switch Diagram

Avocent AMX5020 Features and Benefits:

  • Provides a solution for consolidating the local ports of KVM/IP products
  • Provides full, non-blocked access to servers
  • Delivers real-time, high bandwidth video up to 1,000 feet from the server
  • Front panel LED indicators add to ease-of-use Includes JAVA-based AMWorks software for centralized management
    Network connection on each appliance for ease of management
    The AMIQ server interface module, which provides connection from the server to the switch, reduces cable bulk and saves rack space
  • Compact design conserves rack space Scalable architecture makes it easy to add and support more servers and users
  • Seamlessly integrate existing KVM switches into an AMX KVM matrix solution

Avocent AMX5020 Specifications:

Height 1.7 in. (4.3 cm)
Width 17.2 in. (43.2 cm)
Depth 13.9 in. (35.2 cm)
Weight 9.3 lbs. (4.2 kg)
Operating Temperature 32F (0C) to 122F (50C)
Storage Temperature 4F (-20C) to 122F (50C)
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz
Supported Hardware
Computers AMIQ-PS2, AMIQ-Sun, AMIQ-USB server interface modules: IBM PC/AT, PS/2 and 100% compatibles
Monitor VGA, SVGA, XGA, SXGA, up to 1600 x 1200 @ 75 Hz resolution
Peripherals AM5110, AMX5120 & AMX5130 User Station: PS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), Sun Type 5 and Type 6
Approved Agency UL,cUL,FCC,VCCi,CE, C-Tick
UPC / EAN Barcode icon
UPC 636430027371
EAN 0636430027371
