SmartAVI SignagePro with 40GB Flash Memory and Signage Manager



Replaced by: SmartAVI SignagePro 40GB
Alternative options: Contact Us

SmartAVI AP-SNCL-V40GHD is the 40GB Flash Memory hardware and Signage Manager Software for the SignagePro digital signage solution.  The SmartAVI SignagePro solution creates new marketing and information sharing portals to reach target audiences in different locations with real time information.  This digital signage solution replaces traditional usage of static text and posters for advertising and public announcements.

SignagePro Features:

  • Uses the IP network to remotely manage, control, and broadcast information to target audiences in specific locations.
  • Attracts audiences by displaying messages using high quality video and animation.
  • Capable of playing back all industry standards, such as Flash files, Video .MPG, HTML, QuickTime, Power Point, .JPGs., Java scripts, and more.
  • Basic solution can be programmed to display audio, video, and graphics in various remote sites.
  • Displays messages as full screen web pages, and is compatible with standard web managing tools for easy content management.
  • Provides both hardware and software for the display and management of digital content and is highly cost effective.
  • Content can be scheduled for automatic updates of digital content, and centrally managed by pre-programming system settings.
  • Contains add-in features, such as mouse, keypad, and touch screen for interactive displays.
  • Operates its remote displays in a closed network for maximum security.
  • Optimal solution for both small-scale and large-scale projects.

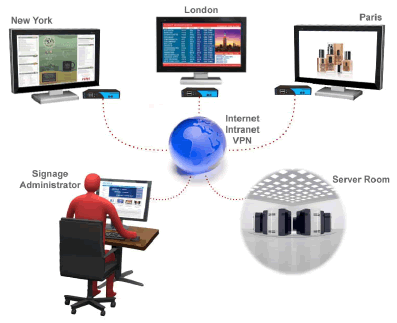

SmartAVI SignagePro Application Diagram
SmartAVI SignagePro Application Diagram

SmartAVI SignagePro Specifications:

Height 2.25 in. (5.72 cm)
Width 8.38 in. (21.27 cm.)
Depth  8 in. (20 cm.)
Processor Integrated Intel Celeron processor 215 with a 533 MHz system bus
Memory Module (DIMM) - One 240-pin DDR2 SDRAM Dual Inline Memory Module (DIMM) sockets
- Support for DDR2 533 MHz and DDR2 400 MHz DIMMs
System Memory Support for up to 1 GB
Chipset SiS* SiS662
Audio ADI* AD1888 audio codec
Video Integrated SiS Mirage* 1 graphic engine
I/O Control Winbond* W83627DHG-B based Legacy I/O controller for hardware management, serial, parallel, and PS/2* ports
LAN Support 10/100 Mbits/sec LAN subsystem using the Broadcom*LAN adapter device
Peripheral Interfaces - Two USB 2.0 ports
- One parallel ATA IDE interface with UDMA 33, ATA-66/100/133 support
- One S-Video output port (optional)
- One serial port
- One parallel port
- PS/2* keyboard and mouse ports
Expansion Capabilities One PCI Conventional* bus connector
Operating System OS Embedded Linux
Formats Supported - Video(AVI, MPEG1, MPEG2, MPEG4, WMV, FLA, DIVX)
- Flash(SWF)
- Still Images (JPEG, GIF, BMP, PNG)
- WebPages (URL)
- Adobe Acrobat (PDF)
- PowerPoint(PPT)
- Audio(MP3, WMA)
- News(RSS)
