SmartAVI SignagePro with 8GB Flash Memory and Signage Manager



Replaced by: SmartAVI SignagePro 16GB
Alternative options: Contact Us

SmartAVI AP-SNCL-V8G is the 8GB Flash Memory hardware and Signage Manager Software for the SignagePro digital signage solution.  The SmartAVI SignagePro solution creates new marketing and information sharing portals to reach target audiences in different locations with real time information.  This digital signage solution replaces traditional usage of static text and posters for advertising and public announcements.

SignagePro Features:

  • Uses the IP network to remotely manage, control, and broadcast information to target audiences in specific locations.
  • Attracts audiences by displaying messages using high quality video and animation.
  • Capable of playing back all industry standards, such as Flash files, Video .MPG, HTML, QuickTime, Power Point, .JPGs., Java scripts, and more.
  • Basic solution can be programmed to display audio, video, and graphics in various remote sites.
  • Displays messages as full screen web pages, and is compatible with standard web managing tools for easy content management.
  • Provides both hardware and software for the display and management of digital content and is highly cost effective.
  • Content can be scheduled for automatic updates of digital content, and centrally managed by pre-programming system settings.
  • Contains add-in features, such as mouse, keypad, and touch screen for interactive displays.
  • Operates its remote displays in a closed network for maximum security.
  • Optimal solution for both small-scale and large-scale projects.

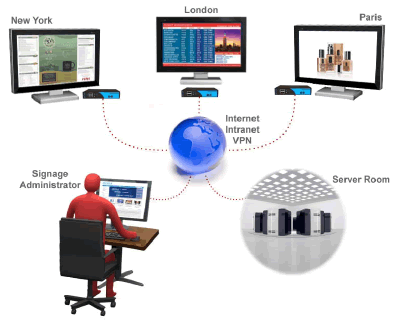

SmartAVI SignagePro Application Diagram
SmartAVI SignagePro Application Diagram

SmartAVI SignagePro Specifications:

Height 5 in. (123 mm.)
Width 7 in. (170 mm.)
Depth 2 in. (56 mm.)
Weight 2 lbs. (0.9 kg.)
Operating Temperature 0 ~ 60 C
Operating Humidity 0% - 90% Relative Humidity, Non-Condensing
Requirement +5V @ 4.0A
CPU Onboard VIA EDEN-N 800MHz Nano
System Chipset VIA CLE266 / VT8235
I/O Chip VIA VT1211
System Memory Onboard 256MB DDR266
Input Output
USB 2 x USB 2.0 Ports (one on front)
Keyboard & Mouse PS2
Chipset Integrated VIA UniChrome 2D/3D with MPEG2 Accelerator
Display Memory 64 MB Share System Memory
CRT Monitor: 1600x1200
AC97 2.2 (Codec) VT1612
Audio Interface Line out, Line In, Mic In
Storage Capacity
HDD Flash Drive from 1 to 64GB
Chipset VT6103 10/100 Base-T
Formats Supported

Video (MPEG1, MPEG2, MPEG4, WMV)
Flash (SWF)
Still Images (JPEG, GIF)
WebPages (URL)
PowerPoint (PPT)
Audio (MP3, WMA)
News (RSS)

Operating System OS Embedded Linux
Software Specifications
Processor IntelR PentiumR D Dual Core with up to 2MB L2 cache, IntelR PentiumR 4 HT
Operating System WindowsR XP Professional, Windows 2003 Server
Memory 1GB Byte for main server, 256M per user
Networking 10/100/1G
Storage Serial ATA, Up to 600GB2 maximum internal storage
