SmartAVI SignWall Video Player with 120GB Disk 4GB RAM

AP-SVW-120G5S

$2,999.00$2,336.88
Save $662.12
FREE Shipping on orders over $100

The SmartAVI AP-SVW-120G5S SignWall makes it easy to create and maintain a dynamic high-definition video wall. Designed for use with up to four high-definition displays, SignWall is a comprehensive video wall solution. At the heart of the SignWall AP-SVW-120G5S system is a powerful digital signage processor. Combined with SignWall's included software it is simple to create an eye-catching dynamic video wall. Use a broad range of media types including video, images, PowerPoint, Flash, PDF, Excel and more to create your dynamic HD video wall.

SmartAVI SignWall is a comprehensive video wall package that is very affordable and fully expandable. The AP-SVW-120G5S unit is manageable from any location on the planet, whether you have one or one thousand installations. SignWall offers crisp high-definition 1920x1200 HDTV video output to up to four displays. SignWall comes bundled with a simple yet powerful software package with no recurring fees.

SignWall is powered by a blazing fast Intel Core i5 or Core i7 processor with 4GB of RAM and a Solid State Drive (SSD). This combined with a VisionTek AMD Radeonª HD 5570 1GB SFF 4-Port DVI-D video processor gives SignWall the power to display seamless full HD 1920x1200 video on 4 displays.

SmartAVI Signwall AP-SVW-120G5S Features and Benefits:

  • Use with up to four high-definition displays per player
  • Synchronizes players to form video walls up to 4X4
  • Supports a broad range of media types including video, images, PowerPoint, Flash, PDF, Excel and more
  • Capture live 1080p HDMI input and play it back in real-time
  • Includes the SignWatchPro surveillance system to monitor your installation
  • Delivers crisp HDTV 720p/1080i resolution on up to 4 displays
  • Simple to install and easy to use, set up a video wall in minutes
  • Control your displays with RS-232 commands
  • FREE server software included with NO recurring fees
  • Control multiple players remotely from anywhere in the world through the internet
  • Add local or live RSS tickers for news and events
  • Expand your video wall network up to 1,000 players!

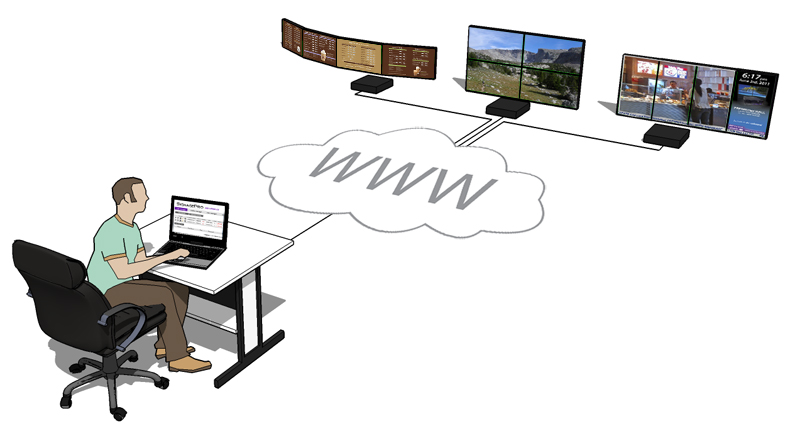

SmartAVI Signwall AP-SVW-120G5S Diagram
SmartAVI Signwall Configuration Diagram
(AP-SVW-120G5S depicted here)

At the core of the SignWall AP-SVW-120G5S system is advanced video synchronization technology. This gives you the power to create a video wall up to 4X4 that supports output locking of video playback. That means you can play a single video that is powered by 4 separate processors, making it the most stable, precise and smooth output possible.

Using synchronization over a simple IP network, up to 4 SignWall processors may be linked to play in concert. The advantage of distributed processing is that the load of video playback is divided amongst the processors. This ensures that the video playback will be absolutely real-time with no jaggies or lag. With SignWall, you can be sure that your video is displayed with perfect clarity and precision.

Using a high-resolution digital camera (not included), SignWatchPro monitors the digital signage installation and reports back with images and video. It can display a live video or it can be scheduled to periodically take still images and video throughout the day. The images and video are accessible anywhere in the world via the internet. They can be sent to an ftp server, via SMS to a phone, or via email.

SignWall is capable of capturing 1080p HD video in real-time and displaying it in any configuration you choose. This feature makes it easy for someone to play a video on the SignWall without having to capture the video ahead of time, eliminating the need to convert video into bulky files. If you need to quickly play a video, just connect your HDMI compatible player to the SignWall's HDMI capture port and play your video. You can choose to play it on one screen or to stretch the video on all four screens as shown above.

SmartAVI Signwall AP-SVW-120G5S Applications

  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch

SmartAVI Signwall AP-SVW-120G5S Specifications:

Mechanical
Width17 in.
Height3.5 in.
Depth15 in.
Supported Formats
ImageJPG, GIF, Animated GIF
VideoAVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, MP@L3.0
AudioMPEF-1 Layer I, II, MPEG-4 AAC
OtherExcel, PowerPoint, PDF, HTML,
Flash, Quicktime, RSS
Video
ResolutionUp to 1920 x 1200 @ 60 Hz
Connector(4) DVI-D
Audio
Other Interfaces
USB2 x USB 2.0, 2 x USB 3.0
PowerInternal 100-240 VAC, 50-60 Hz, 60 W
Network RJ-45 Gigabit
FirewireIEEE 1394a
Environmental
Operating Temperature35° F to 96° F
Storage Temperature-20° F to 140° F
Power Supply12VDC 2A External PS
System Specifications
MotherboardIntel BOXDP67DEB3 LGA 1155 Intel P67 SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
ProcessorIntel Core i5-2400 Sandy Bridge 3.1GHz (3.4GHz Turbo Boost) LGA 1155 95W Quad-Core Desktop Processor
RAM-20° F to 140° F
StorageSanDisk Ultra SDSSDH-120G-G25 2.5" 120GB SATA II Internal Solid State Drive (SSD)
VideoIntel HD Graphics 2000 PCI-E 4-Port DVI-D
Operating SystemWindows 7
Warranty1 Year
UPC / EAN Barcode icon
UPC 813280016353
EAN 0813280016353
