SmartAVI SignWall-Pro Video Player with 120GB Disk 4GB RAM


Save $838.74
FREE Shipping on orders over $100

The simple highly-customizable video wall solution that can display multiple streams of real time video content directly from your cable box, camera and local network.

SmartAVI SignWall-Pro AP-SVWP-120G5S Features and Benefits:

  • Supports 1080p HDMI Video
  • Includes Video Capture to Display Live Video Feeds, Including Web Cams
  • Controls up to Four Screens
  • Schedules Automatic Content Changes
  • Fully Customizable Display Options and Preconfigured Templates
  • Potential for Selling Ad Space and Bringing In Extra Revenue
  • Full Emulation at Every Computer
  • Plug-and-Play for Quick and Easy Installation

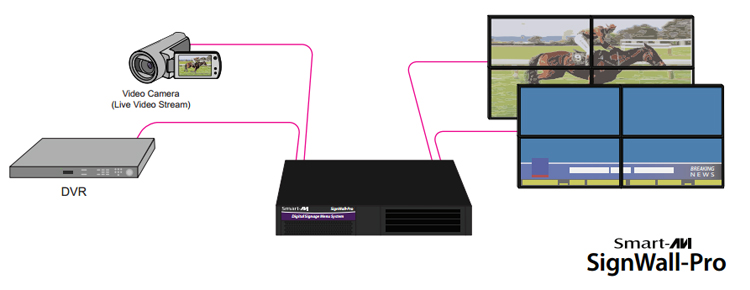

SmartAVI Signwall AP-SVW-120G5S Diagram

SmartAVI Signwall AP-SVW-120G5S Diagram

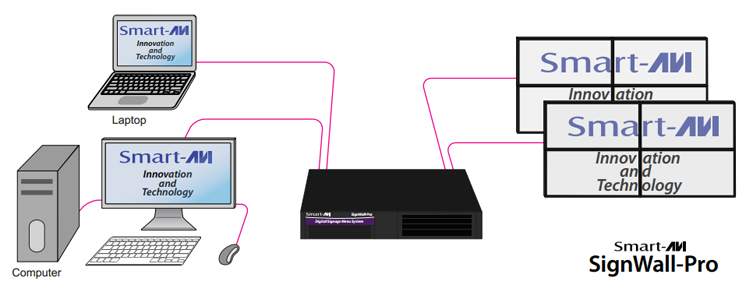

SmartAVI Signwall AP-SVW-120G5S Diagram

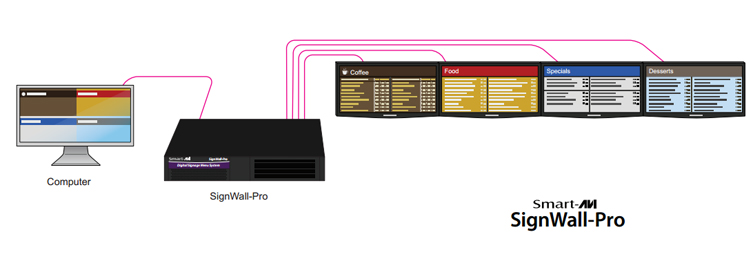

Examples of what a setup would look like.

SmartAVI SignWall-Pro AP-SVWP-120G5S Applications

  • Airports
  • Malls
  • Control Rooms
  • Schools, Colleges, and Universities
  • Mass Video Conferencing
  • Casinos
  • Corporate Lobbies
  • Restaurants

SmartAVI SignWall-Pro AP-SVWP-120G5S Specifications:

Supported Formats
ImageJPG, GIF, Animated GIF
VideoAVI, WMV9, MPEG-2 PS, MPEG-1, MPEG-2 MP@ML, MPEG-4.2 ASP, MPEG-4.10/H.264, MP@L3.0
AudioMPEF-1 Layer I, II, MPEG-4 AAC
OtherExcel, PowerPoint, PDF, HTML,
Flash, Quicktime, RSS
ResolutionUp to 1920 x 1200 @ 60 Hz
Connector(4) DVI-D
Other Interfaces
PowerInternal 100-240 VAC, 50-60 Hz, 500 W
Network RJ-45 Gigabit
Operating Temperature35° F to 96° F
Storage Temperature-20° F to 140° F
System Specifications
MotherboardIntel BOXDP67DEB3 LGA 1155 Intel P67 SATA 6Gb/s USB 3.0 Micro ATX Intel Motherboard
ProcessorIntel Core i5 Haswell 3.1 GHz(3.4 GHz Turbo Boost) LGA 1155 95W Quad Core Desktop Processor Intel Core i7 Haswell 3.4 GHz(3.8 GHz Turbo Boost) LGA 1155 95W Quad Core Desktop Processor
RAM4GB (2 x 2GB) 240-Pin DDR3 SDRAM DDR3 1333 (PC3 10666) Desktop Memory
Storage120GB Internal Solid State Drive (SSD)
Operating SystemWindows 7 Pro 64 Bit
Warranty1 Year
UPC / EAN Barcode icon
UPC 813280016360
EAN 0813280016360
