Cyclades AlterPath PM8-15A Intelligent power distribution unit

ATP0601

$649.00

Discontinued
Recommended replacement: Remote Reboot
Alternative options: Contact Us

Cyclades AlterPathPM8-15a (ATP0601)

The Cyclades AlterPath PM is a family of intelligent power distribution units (IPDUs) that enables remote power management and control of servers and network gear. When used in conjunction with the Cyclades console servers, KVM switches or the Cyclades AlterPath Manager, the Cyclades AlterPath PM intelligent power control unit (ATP0601) provides a power management system with easier management capabilities and faster problem solving by integrating system access and power control into a single interface.

Cyclades AlterPathPM ATP0601

Cyclades AlterPathPM ATP0601


Features and Benefits

  • Independent control of power ports (power on/off/cycle)
  • Daisy-chaining support at control level (up to 128 outlets)
  • Support for name assignment to the power ports
  • LED on/off power indicators per power port
  • LED digital current display
  • Overcurrent alarm (sound and console notification)
  • Horizontal (1U) and vertical (0U) mounting
  • The highest port density in the market (10 power outlets per U)
  • Sequential power-up
  • Local authentication support (up to 8 users)
  • User access lists per power port

Power Management System:

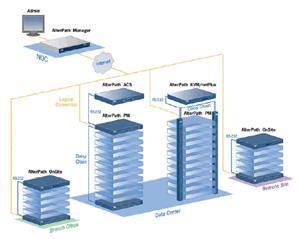

Integrate the Cyclades AlterPath PM with a Cyclades console server or KVM switch and take advantage of the following features:

  • Secure remote power management
  • Integrated console and power management
  • Integrated KVM and power management
  • HTTP/HTTPS user friendly Power Management Interface
  • Telnet/SSH/SNMP management of power outlets
  • Local, RADIUS, TACACS+, Kerberos and LDAP authentication
  • Token-based strong authentication (SecurID)
  • Events notification (e-mail/SMS/SNMP trap)

Cyclades AlterPathPM ATP0601

Cyclades AlterPathPM ATP0601


AlterPath PM - NEMA models

The NEMA models come with NEMA5-15R power outlets and NEMA input power cables. These products are designed to operate at 100-125V. The NEMA models come in 15A, 20A and 30A units with optional twist-lock input plugs. The Cyclades AlterPathPM8-15a (ATP0601) is a NEMA unit.

AlterPath PM - IEC models

The IEC models come with IEC320-C13 power outlets and IEC320 input connectors or fixed power cables. These products are designed to operate at 100-240V. The IEC models come in 10A, 15A, 16A, 20A, 30A and 32A units.




Cyclades AlterPathPM8-15a (ATP0601)

Specifications


Mechanical
Height 37.60 in / 95.50 cm
Width 1.80 in / 4.57 cm
Depth 2.20 in / 5.59 cm
Weight 10 lb / 4.55 kg
Mounting Vertical
Environmental
Operating Temp 50°F to 122°F (10°C to 50°C)
Storage Temp -40°F to 185°F (-40°C to 85°C)
Power
Input Voltage 100-125 Volts
Max. branch circuit rating 15 Amps
Input connector NEMA5-15P
Max. output current per outlet 15 Amps
Output connector NEMA5-15R
Supported Hardware
Interfaces 2 RS232 Serial Port (RJ45, 9600 bps)
  1 LED Display
Standards Certification
  FCC Part 15, A
  UL/cUL
