Cyclades AlterPath 10 outlets, 16 A max. branch, IEC 320-C20 Intelligent Power



Recommended replacement: Remote Reboot
Alternative options: Contact Us

The Cyclades AlterPath AlterPath PM10i-16A (ATP3116) is a 10 outlets, 16 A max. branch, IEC 320-C20 Intelligent Power Distribution Unit (IPDU).  The Cyclades PM is a family of  IPDUs that enable remote power management and control of servers and network gear. When used in conjunction with the Cyclades console servers, KVM switches or the Cyclades AlterPath Manager, the Cyclades AlterPath PM intelligent power control unit (ATP3116) provides a power management system with easier management capabilities and faster problem solving by integrating system access and power control into a single interface.

The ATP3116 comes with IEC320-C13 power outlets and IEC320 input connectors or fixed power cables. These products are designed to operate at 100-240V.

Cyclades AlterPathPM ATP3116 Power Connectors

Cyclades AlterPathPM ATP3116
Power Connectors

Cyclades ATP3116 Features and Benefits:

  • Independent control of power ports (power on/off/cycle)
  • Daisy-chaining support at control level (up to 128 outlets)
  • Support for name assignment to the power ports
  • LED on/off power indicators per power port
  • LED digital current display
  • Overcurrent alarm (sound and console notification)
  • Horizontal (1U) and vertical (0U) mounting
  • The highest port density in the market (10 power outlets per U)
  • Sequential power-up
  • Local authentication support (up to 8 users)
  • User access lists per power port

Cyclades AlterPath PM10-20A (ATP3116)

Cyclades AlterPath PM10i-16A (ATP3116)

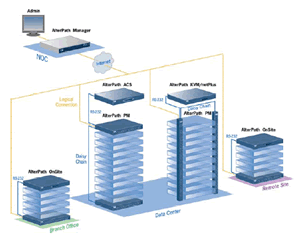

Power Management System:

Integrate the Cyclades AlterPath PM with a Cyclades console server or KVM switch and take advantage of the following features:

  • Secure remote power management
  • Integrated console and power management
  • Integrated KVM and power management
  • HTTP/HTTPS user friendly Power Management Interface
  • Telnet/SSH/SNMP management of power outlets
  • Local, RADIUS, TACACS+, Kerberos and LDAP authentication
  • Token-based strong authentication (SecurID)
  • Events notification (e-mail/SMS/SNMP trap)

Cyclades AlterPath PM10i-16A (ATP3116)

Cyclades AlterPath PM10i-16A (ATP3116)

Cyclades ATP3116 Specifications:
Height 1.75 in / 4.45 cm
Width 17.00 in / 43.18 cm
Depth 8.00 in / 20.32 cm
Weight 8 lb / 3.64 kg
Mounting Horizontal
Operating Temp 50°F to 122°F (10°C to 50°C)
Storage Temp -40°F to 185°F (-40°C to 85°C)
Input Voltage 100-240 Volts
Max. branch circuit rating 10 Amps
Input connector IEC320-C14
Max. output current per outlet 10 Amps
Output connector IEC320-C13
Supported Hardware
Interfaces 2 RS232 Serial Port (RJ45, 9600 bps)
  1 LED Display
Standards Certification
  EN55022, A (CE)
