Avocent AutoView 2000 2x16 Cat5 KVM Switch
AV2000-AM
Avocent's multi-user AutoView 2000 KVM switch delivers simple, reliable and convenient connectivity to all major server platforms. AutoView 2000 features end-to-end CAT 5 connections, advanced cable management and powerful on-screen management. The AVRIQ CAT 5 designed cable interface automatically assigns and retains unique server names for each attached server, which simplifies installation and eases re-configuration.

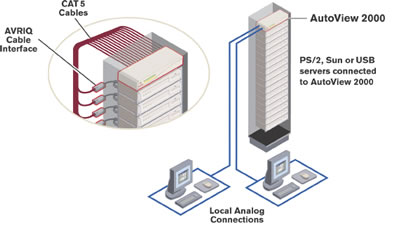

Avocent AutoView AV2000-AM Functional Diagram
Avocent AutoView AV2000-AM Features and Benefits:
- All CAT 5 cabling reduces cable bulk
- Supports all major server platforms
- Flexible access for two simultaneous local users
- One click, flash upgrades for all connected AVRIQs
- Advanced on-screen management provides easy configuration and server selection
Avocent AutoView AV2000-AM Specifications:
| Mechanical | |
| Height | 1.7 in. (4.5 cm) |
| Width | 17.2 in. (43.7 cm) |
| Depth | 6.5 in. (15.61 cm) |
| Weight | 4.8 lbs. (1.91 kg) |
| Environmental | |
| Operating Temperature | 41F (0C) to 104F (40C) |
| Storage Temperature | -4F (20C) to 122F (50C) |
| Power | |
| Operating Voltage | 100 - 240 VAC, 50 - 60 Hz |
| Supported Hardware | |
| Computers | IBM PC/AT, PC and 100% compatibles |
| Monitor | XGA, XGA-II with adapter, 1600 x 1200 @ 85 Hz resolution |
| Peripherals | PC keyboard, PC mouse, Microsoft Explorer mouse, Microsoft IntelliMouse family, IBM Scrollpoint, Logitech Mouseman Wheel, Logitech Trackman Marble Wheel, Logitech Marble FX and Kensington 4-button mouse |
