SmartAVI AVRouter 32x32

AV32X32S

$21,999.00$17,142.08
Save $4,856.92
FREE Shipping on orders over $100
smartavi_madeinusa

The AVRouter 16 series of products provides an unprecedented range of switching and distribution equipment for XVGA and HD video by combining the features of a high-quality video matrix, interactive infrared control, and an easy to use Windows¨ - based control software.



Features

  • High quality audio and video switching
  • High resolution up to 1920 x 1200
  • InfraRed and RS422 control
  • PC Windows software control
  • Can be mixed with other video signal (RGB, YUV, RGBS)

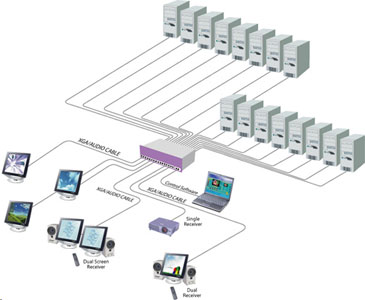

diagram

Applications

  • Wall Displays
  • Audio Visual Presentation
  • Digital media
  • Shopping centers
  • Airports
  • Security
  • Dealer rooms
  • Point of sale
  • Control rooms
  • Hotels
Mechanical
Height 5.24 in. (3.81 cm)
Width 19 in. (21.84 cm.)
Depth 11.25 in. (13.71 cm.)
Bandwidth400MHz
Input Signal Level1 volt pk-pk into 75R
Output Impedance150 Ohms
Input Impedance75 Ohms
FormatVGA / SVGA / XGA / RGBHV / RGsB / CVBS / YC / YUV / RGBS
SyncsTTL5VDC
RS-2329600bps, DB9 Female, TX, RX, GND
IR3.5mm connector with 38khz
GUIWindows Xp, Windows 7 compatible
Power Voltage90-230V IEC 1A A/S 50/60 Hz
UPC / EAN Barcode icon
UPC 813280020770
EAN 0813280020770
