Adder KVM Over IP 8-port AdderView Matrix

AVIP208-USA

Discontinued
Recommended replacement: Adder AVX1008IP-US
Alternative options: Contact Us

The Adder AVIP208 is a KVM switch and KVM-via-IP package that delivers the benefits of an advanced KVM switch with the convenience of remote IP access, providing a powerful server management solution.  The AdderView IP combines the advantages of a professional grade KVM switch with the flexibility of global KVM-via-IP access. The KVM and IP functions of the AVIP208 are provided by AdderView and AdderLink products, configured to work together as a single integrated system enabling local (server room) and global, IP based control of 8 computers (or more when cascaded). The AdderView IP offers a dual-access KVM switch with On-Screen-Display control and a KVM-via-IP solution that uses HTTP or RealVNC for highly secure connections and high performance.

Note:  The package provides one IP connection but the product maybe upgraded to provide dual simultaneous IP sessions by connecting a second AdderLink IP.

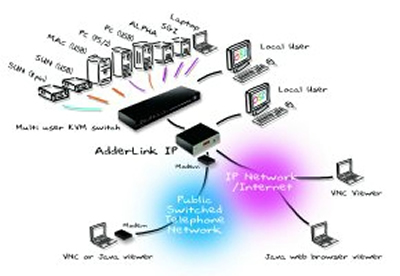

Adder AVIP208 KVM Switch Diagram
Adder AVIP208 KVM Switch Diagram

Adder AVIP208 Features:

  • Easy on screen display driven set up and configuration
  • Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) with 16 user profiles and access data logging
  • Includes rack mount kits
  • Supports exclusive access mode or up to four simultaneous connections
  • Modem port and 10/100 Mb Ethernet port for dialup and/or IP network access
  • Power control functions supported via dedicated serial port
  • DDC support
  • Compatible with all major O/S

Adder AVIP208 Specifications:

Mechanical IP Unit Switch Unit
Height 1.76 in. (44 mm.) 1.8 in. (45 mm.)
Width 7.92 in. (198 mm.) 19 in. (482 mm.)
Depth 4.8 in. (120 mm.) 8 in. (205 mm.)
Rack Units 1U 1U
Environmental
Operating Temperature 0°C to 40° / 32°F to 104°F
Power Supply 100 - 240 VAC 50-60Hz
Video Modes
Global IP Support standard PC, Sun and Mac video modes up to resolutions of 1600 x 1280 with scalable viewer
Local 1900 x 1440, DDC compliant
Hardware Compatibility Supports PC, RS/6000, Alpha and SGI computers using PS/2 or Sun (USB & 8-pin styles) and Mac (USB) when using the appropriate CCUSB / CCSUN interface cables
O/S Compatibility All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, Netware etc.
Local Consoles
Video HDD15
Keyboard/Mouse MiniDin6. (x2)
Connections
Ethernet RJ45 10/100 autosensing
Serial 2 x DB9 (power control and modem)
Video HDD15
Keyboard/Mouse MiniDin6
Approvals CE, FCC
