AdderView Omega 2-Port KVM Switch

AVO2C

Discontinued
Recommended replacement: Avocent SwitchView 10025
Alternative options: Contact Us

The Adder AVO2C AdderView Omega is a dual-port cross-platform system that connects two PS/2 and/or USB machines. The AVO2C KVM switch features flash upgradeable firmware to allow for future upgrades to functionality and is compatible with PC, Apple and Sun systems.  Designed for easy set-up and operation, the selected system can be accessed by three button mouse, keyboard hotkey switching or the Omega button. The Omega KVM switch needs no additional power supply, and comes equipped with all required cables.  With 400 MHz bandwidth capability, the Omega AVO2C delivers excellent display quality by supporting high video resolutions and fast refresh rates, with advanced features such as audio and microphone switching make the Omega ideal for multimedia applications.

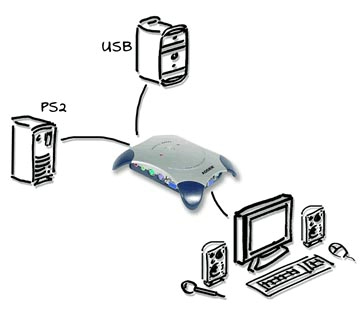

Adder AVO2C KVM Switch Diagram
Adder AVO2C KVM Switch Diagram

Adder AVO2C Features:

  • Connections to the computer may be PS/2, USB or both mixed
  • High video quality Screen - resolution of up to 1900 x 1440 supported.
  • Switching by Omega button, keyboard hotkey or 3 button/wheel mouse
  • Channel indicators show selected port and data activity
  • Flash upgradeable via the PS/2 keyboard connection - both PS/2 and USB processors are upgradeable
  • USB connections achieved by simply plugging a cabling adapter onto the end of a standard PS/2 style keyboard cable
  • High video quality with DDC support (400MHz)
  • Audio for both speakers and microphone
  • Keyboard, video or mouse may be switched separately or together with the audio signals, either by the mouse or keyboard hotkey control
  • New mouse hot plug feature enables the user to disconnect the controlling mouse and plug in a new mouse without performing any reset or initialisation process
  • Controlling keyboard and mouse power-down reset feature and computer mouse re-initialisation functions
  • Configurable hotkeys, configurable mouse switching, screen blanking feature, user selectable password security and firmware version reporting
  • Compatible with PCs, laptops, RS6000, Alpha, SGI, Mac(USB) and Sun(USB)
  • Supports prompt and stream mode mouse implementations, laptop Y cables and docking stations - mode 1,2 and 3 keyboards supported
  • Supports MS Intellimouse and MS Intellimouse Explorer in addition to almost all 2 button, 3 button, wheel, optical and ball mice
  • Supports Windows native, Microsoft and Logitech mouse drivers and most other compatible drivers
  • Compatible with Windows 3.X, 95, 98, NT, 2000, XP, ME, DOS, Unix, Linux, OS/2, Novell, BSD and all other major software
  • Special software support ensures compatibility with Linux Mandrake, Linux Suse, HP Vectra computers and IBM ThinkPads
  • Omega may be cascaded from Adder OSD switches and controlled via OSD
  • USB 'phantom key' detection and suppression
  • Supports USB keyboard boot-protocol modes as well as enhanced operational modes

Adder AVO2C Specifications:

Mechanicall
Height 1.1 in. (30 mm.)
Width 5.11 in.(130 mm.)
Depth 6.1 in. (155 mm.)
Weight 0.46 lbs. (210 g.)
Connectors CPU
2 15 way HD D female for CPU video (DDC/blue)
2 6 way mini DIN female for CPU keyboard (violet)
2 6 way mini DIN female for CPU mouse (green)
2 3.5mm stereo jack socket for connection to audio
2 3.5mm jack socket for connection to microphone
Connectors Control
1 6 way mini DIN female for shared keyboard (violet)
1 6 way mini DIN female for shared mouse (green)
1 3.5mm stereo jack socket for connection to PC speakers
1 3.5mm jack socket for connection of microphone
Keyboard Port Supports AT and PS/2 keyboards automatically
Mouse Port A PS/2 type Logitech or Microsoft compatible mouse is required to control the switch.
Cables
2 Tri Bonded keyboard, video monitor and mouse cables 2 mtr
2 Dual Bonded stereo & mono audio 3.5mm jack to jack cables 2 mtr
2 PS/2 Female to USB type A adapters
