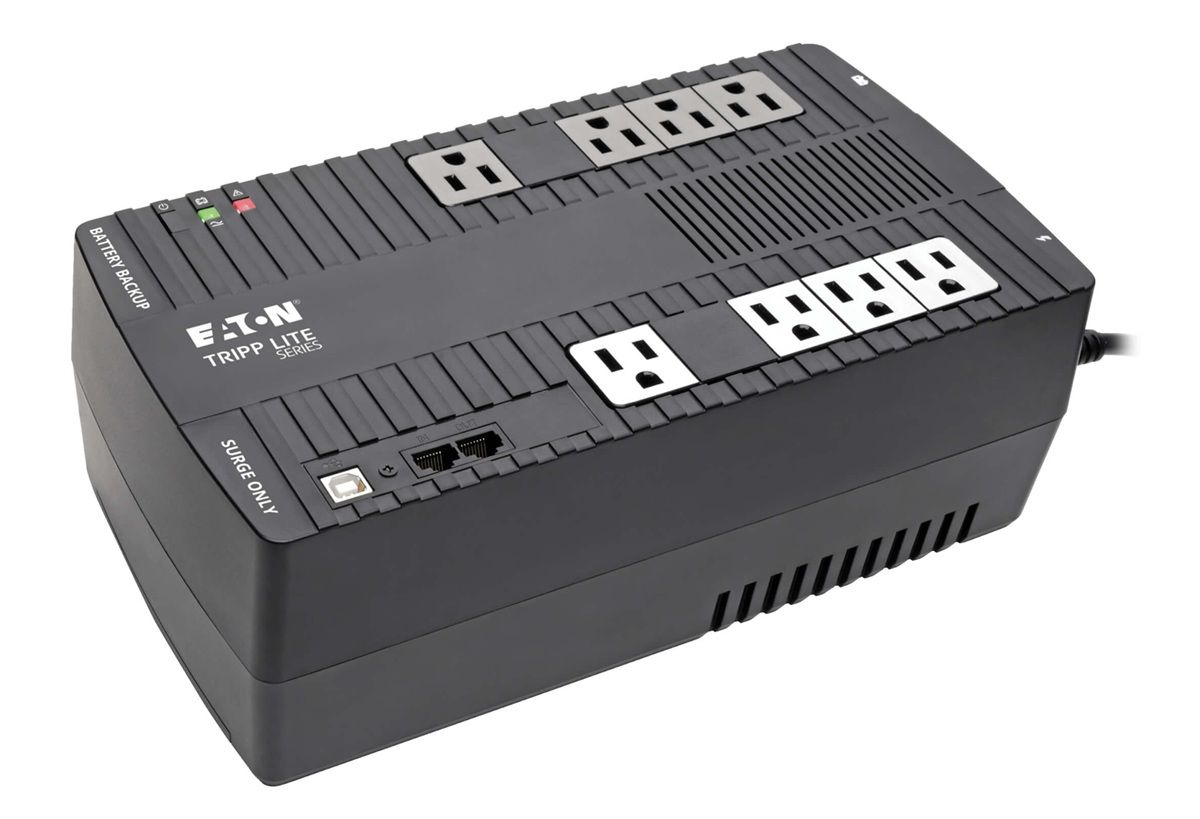

Tripp Lite series 550VA 300W Line-Interactive UPS
AVR550U
Save $58.95
Desktop UPS provides battery backup support with automatic voltage regulation (AVR) for your home/office network system or home theater.
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- 8 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- High >95% efficiency with low BTU ratings saves electricity and lowers your energy costs
- 3-year limited warranty
- $100,000 Ultimate Lifetime Insurance
550VA/300W/120V Battery Backup for PCs, Home Theater or Digital Signage
The line-interactive AVR550U UPS system with AVR protection provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup is ideal protection for your home office, media center or commerce components, including computers, routers, printers, HDTVs, Blu-ray players, game consoles, ATMs, security systems and digital signage equipment.
Allows Time to Back Up Critical Files During a Blackout
Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep an energy-efficient desktop computer with small LCD monitor powered as long as 32 minutes. During normal operation, incoming utility power keeps the replaceable internal battery fully charged, so backup power will always be available.
8 NEMA 5-15R Outlets Protect Your Connected Components
Four 5-15R outlets provide battery backup, surge protection and voltage regulation for your computer, monitor and other crucial components. The other four 5-15R outlets provide surge suppression only for printers, speakers and other desktop equipment regarded as non-essential during a blackout. A high >95% line mode efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The AVR550U can correct brownouts as low as 89V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
316 Joules Fight Back Against Unexpected Power Surges
A 316-joule surge suppression rating protects connected components from the harmful effects of power surges.
Combats Electromagnetic Interference That Can Harm Equipment
Various electromagnetic and radio sources found in virtually every home and business can cause disruptive interference on the AC line. Known as EMI (electromagnetic interference) and RFI (radio frequency interference), this line noise is a common cause of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The AVR550U incorporates technology that filters out disruptive line noise so that it won't affect your equipment.
Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The UPS remains silent in both line and battery backup modes. The alarm sounds only to report low battery, battery replace, overload and fault condition. Dual front-panel LEDs report line and battery mode operation.
HID-Compliant USB Port Allows for Automatic Saves and Shutdowns
This USB port connects the AVR550U to a computer running free downloadable PowerAlertŪ software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. USB cable is included.
Compact Housing Compatible with Easy Desktop or Wall-Mount Installation
The space-saving ABS housing fits on a desktop, shelf or anywhere else convenient to your workstation or home theater. Keyhole mounting tabs on the rear allow easy wall-mount installation. The five-foot power cord with NEMA 5-15P plug connects to any compatible AC outlet.
Tripp Lite AVR550U Specifications:
| Mechanical | |
| Height | 4.3 in. (110 mm.) |
| Width | 6.4 in. (163 mm.) |
| Depth | 12 in. (305 mm.) |
| Weight | 13.11 lbs. (6.21 kg.) |
| Shipping weight | 16 lbs. (7.3 kg.) |
| Material of construction | ABS |
| Form factors supported | Tower; Ultra-compact desktop; Wallmount |
| Battery Access | Battery access door |
| Environmental | |
| Operating Temperature | +32 to +104 F (0 to +40 C) |
| Storage Temperature | +5 to +113 F (-15 to +45 C) |
| Relative Humidity | 0 to 90%, non-condensing |
| Output | |
| Volt amp capacity | 550 VA |
| Watt capacity | 300 watts |
| Nominal voltage | 120V AC |
| Voltage regulation | LINE MODE: 120V (+6%/-12%) BATTERY MODE: 120V (±10%) |
| Output AC Waveform | AC MODE: Pure sine wave BATTERY MODE: PWM sine wave |
| Quantity/type | 8 x NEMA 5-15R |
| Input | |
| Maximum input amps | 6A |
| Connection type | NEMA 5-15P |
| Cord length | 5 ft. |
| Recommended electrical service | 15A 120V |
| Battery | |
| Full load runtime | 2 minutes (300W) |
| Half load runtime | 9 minutes (150W) |
| DC system voltage | 12V DC |
| Battery recharge rate | 8 hours (10% to 90%) |
| Replacement battery cartridge | RBC51 |
| Voltage Regulation | |
| Voltage regulation description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 89 to 145 |
| Overvoltage Correction | Input voltages between 128 and 145 are reduced by 15% |
| Undervoltage Correction | Input voltages between 89 and 108 are boosted by 18% |
| LEDs Alarms & Switches | |
| LEDs | 2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions (see manual) |
| Alarms | Audible alarm with 15 second delay sounds to indicate loss of utility power. Alarm can be silenced by pressing front panel alarm cancel button. Once silenced, alarm will re-sound when approximately 2 minutes runtime remain. |
| Switches | Power off/on switch |
| Surge/Noise Suppression | |
| AC surge suppression | 316 joules |
| AC suppression response time | Instantaneous |
| Dataline suppression | 1 line TEL/DSL or Ethernet |
| EMI/RFI AC noise suppression | Yes |
| Communications | |
| Communications Interface | USB (HID enabled) |
| Cabling included | USB interface cable included |
| WatchDog compatibility | Supports Watchdog application, OS and hard-reboot restart options for remote applications |
| Network Management Card Description | Network management not supported |
| Line/Battery Transfer | |
| Transfer time from line power to battery power | 6 milliseconds typical (10 milliseconds max) |
| Low voltage transfer to battery power | 89 |
| High voltage transfer to battery power | 145 |
| Certifications | RETIE (Colombia); CSA (Canada); NOM (Mexico); UL 1778 ENERGY STAR Qualified; FCC Part 15 Class A (USA); RoHS |
