SmartAVI UXGA Router to 32 Remote Monitors

AV32X16S

$12,999.00

Discontinued
Recommended replacement: NTI SM-32X16-15V-LCD
Alternative options: Contact Us

The SmartAVI AVRouter32 is a 32x16 AV Router that is a high-quality switching matrix for video signals. Signal formats include VGA, SVGA, XGA and UXGA. Standard VGA connectors (HD15 sockets) are used on the rear for ease of installation for video connectivity and RCAs for computers.  AVRouter contains a high bandwidth (400MHz) routing matrix for the Red, Green and Blue video channels. The color signals and are then balanced internally with the combined signal is then driven out through boosted signals.

SmartAVI AVRouter32 Features:

  • RS-232 Windows GUI control
  • Very high quality Video switching
  • High bandwidth 400MHz
  • High resolution up to 1900 x 1200
  • Infrared and RS-232 control
  • PC Windows software control
  • Output cable drives cable up to 100ft.
  • TCP/IP and Telent control
  • Can be mixed with other video singal (RGB, YUV, RGBS)
  • HD Compatible (480p, 720p, 1080i, 1080p)

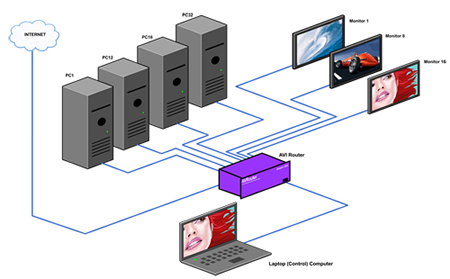

SmartAVI AVRouter32 Application Diagram
SmartAVI AVRouter32 Application Diagram

Applications for the AVRouter32 include

  • Wall displays

  • Visual Presentation

  • Digital media

  • Shopping centers

  • Airports

  • Security

  • Dealer rooms

  • Control room

  • Hotels

SmartAVI AVRouter32 Specifications:

Mechanical
Height 5.24 in. (133.10 mm.)
Width 19 in. (483 mm.)
Depth 11.25 in. (285.75 mm.)
Weight 20 lbs. (9 kg.)
Rack Units 3U
Power
Supply 110V to 220VAC
Voltage 90-230V IEC 1A A/S 50/60 Hz
Control
RS4-22  Dual RJ45 Sockets
Video
Bandwidth 400MHz
Input Signal Level 1Volt-pk into 75R
Output Impedance 100 Ohms
Input Impedance 75R Ohms
Connector HD15 socket
Format VGA/SVGA/XGA/RGBHV/
RGsB/CVBS/YC/YUV/RGBS
Syncs TL5VDC
Bandwidth Horizontal Sync up to 85KHz
UPC / EAN Barcode icon
UPC 813280020763
EAN 0813280020763
