The Avocent AutoView Wireless (AVW3500R-001) solution provides wireless connectivity between computers and monitors, keyboards, mice and audio devices. The wireless Transmitter(s) and Receiver(s) are the building blocks for a user definable 2 x 16 KVM switching and/or 1 to 8 video broadcasting solution. The firmware features a user-friendly OSD for managing the connectivity, making adjustments and tuning the video settings. The industry standard design makes the Avocent AutoView Wireless (AVW3500R-001) compatible with virtually any PC, display technology and operating system, requiring no new drivers, software or OS upgrades.

Avocent AutoView Wireless (AVW3500R-001)

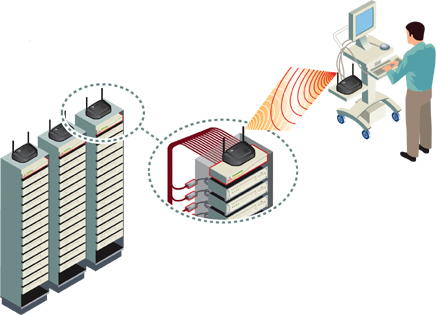

Avocent AutoView Wireless (AVW3500R-001) Function Diagram

Avocent AutoView Wireless (AVW3500R-001) Features and Benefits:

  • Wireless KVM Connectivity: Enables wireless connectivity between 2 workstations and up to 16 computers, and/or wireless video broadcasting from one VGA source to 8 displays.
  • 802.11a Standards-Based Design: The design uses the 802.11a standard and proprietary link layer protocol that allows greater throughput performance while achieving greater security.
  • Secure Connectivity: Advanced Encryption Standard (AES) provide secure connections.
  • Plug-and-play Installation: Requires no new operating system, drivers or application software.
  • Convenient OSD: Features a graphical OSD for making adjustments and tuning the video settings.
  • Transmitter: Connects directly to the computer and serves as the radio interface device enabling the computer to transmit audio and video data.
  • Receiver: Connects directly to the user interface devices (keyboard, video monitor, mouse and audio speakers or headphones), serving as the radio interface device for these components.
  • Configurable: The number of transmitters and receivers can be easily scaled for specific configurations.

Avocent AutoView Wireless (AVW3500B-001) Specifications:

Height 1.75"
Width 6.25"
Depth 5.25"
Antennas Extend 4 ¾" above lower surface of housing
Weight 1 lb. (Receiver)
Operating Temperature 32° F (0° C) to 104° F (+40° C)
Storage Temperature 4° F (-20° C) to 122° F (50° C)
Operating Voltage 12 VDC@1A from supplied 100-240 VAC 50/60 Hz switching power supply
Power Input Connector 2.1mm ID, 5.5mm OD, 9.5mm length barrel connector, tip positive
Supported Hardware
Computers Most standard IBM compatible computers (with the exception of Macintosh)
Monitor VGA, SVGA, XGA
Peripherals PS/2 keyboard, PS/2 mouse, extended speakers
Video Link Performance 640 x 480, 800 x 600, 1024 x 768
Video Link Compatibility VGA, SVGA, XGA
Video Interface VGA compatible
Analog RGB (15, pin D-shell), non-interlaced
60 Hz refresh rate
Audio Support Digital audio
Radio Protocol IEEE 802.11a
Radio Frequency Proprietary
Modulation Nominal Output 17 dBm
Power Range XGA video resolution to 100 feet
Security AES encryption, proprietary 802.11a link layer and proprietary video compression
