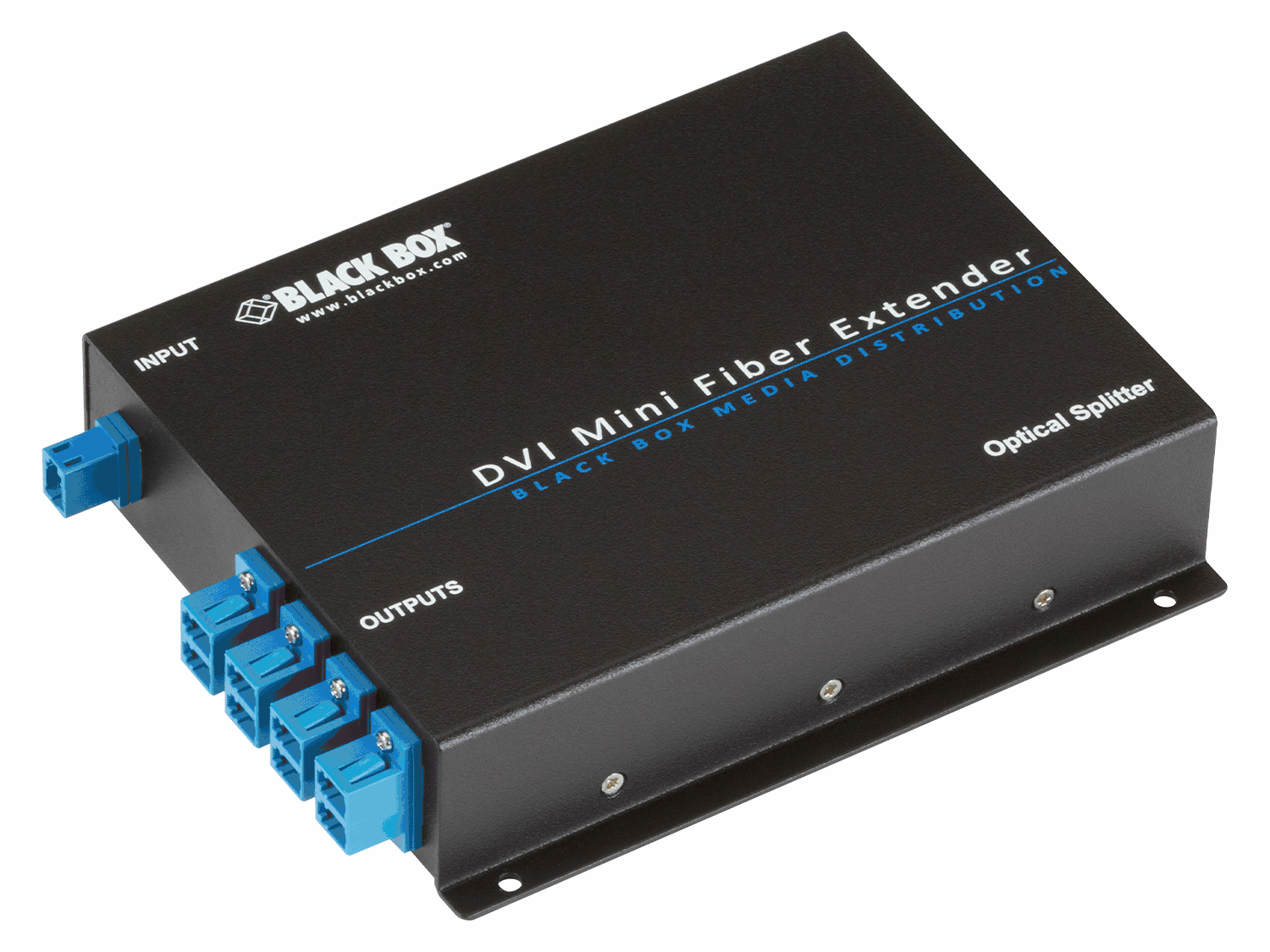

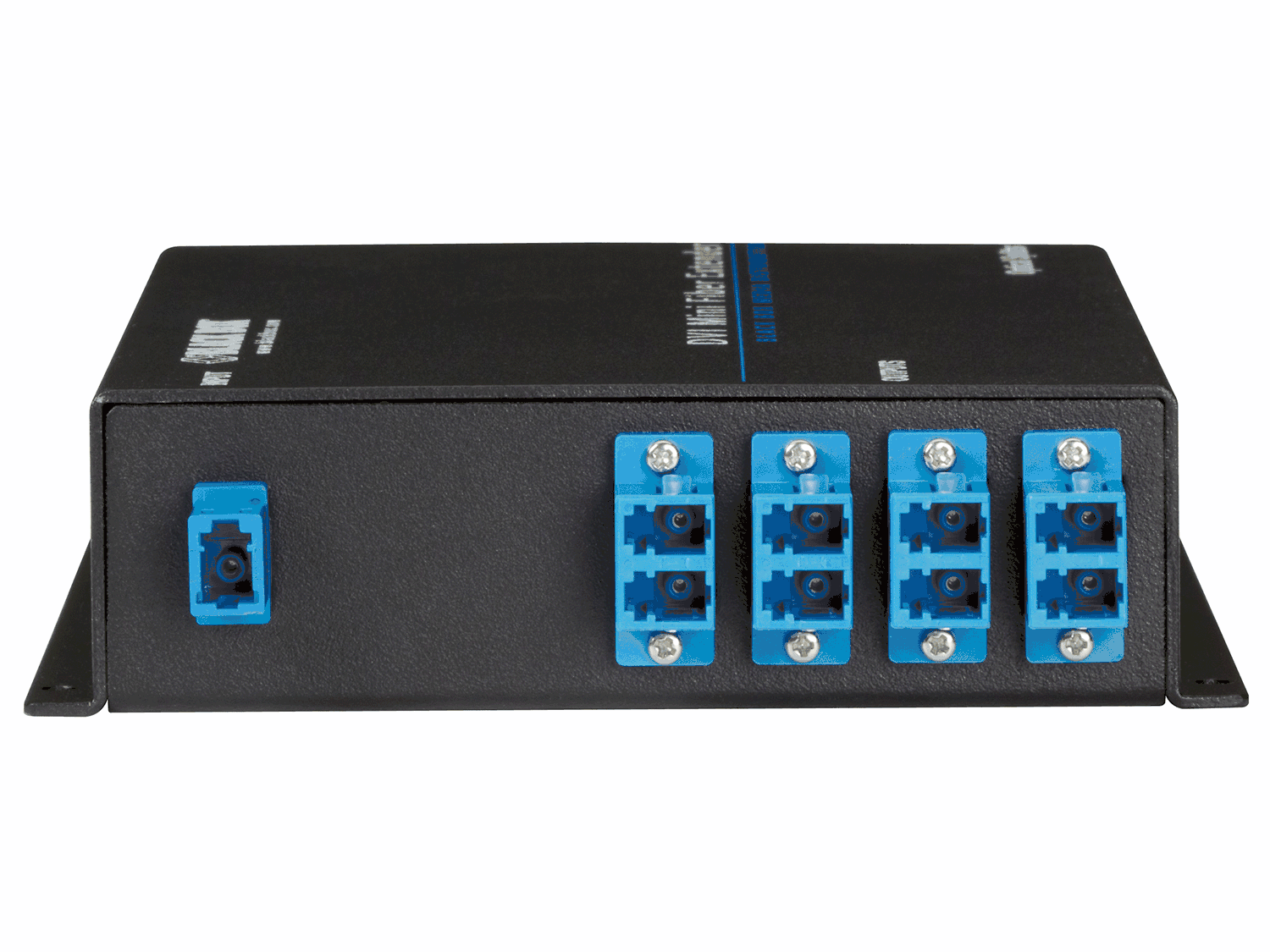

Optical Splitter for AVX-DVI-FO-MINI Extender Kit - 8-Port

AVX-DVI-FO-SP8

$672.16$540.77
Save $131.39
FREE Shipping on orders over $100

Optical Splitter for AVX-DVI-FO-MINI Extender Kit - 8-Port
AVX-DVI-FO-SP8

This economical optical splitter enables you to reach more remote screens with the Mini Extender Kit for DVI-D and Stereo Audio over Fiber. Like the original transmitter/receiver kit, the splitter uses a single fiber to transmit signals - without compromising the quality of the original video or audio signal. It also supports 24-bit true-color depth, which makes it great for sharing video on multiple screens in healthcare, education, multimedia production, or process engineering applications.

AVX-DVI-FO-SP8 Features

  • Splits the signal from the AVX-DVI-FO-MINIs transmitter for additional screen connectivity.
  • Offers all the Full HD video and 24-bit stereo audio capabilities as the base extender.
  • Compact passive device; requires no power supply.

AVX-DVI-FO-SP4 Diagram

AVX-DVI-FO-SP8 Details

  • Great for reaching digital signage in multiple locations.
  • Ideal for applications with a high level of EMI/RFI in the environment.
  • Transmits over just a single strand of fiber for each channel.
  • Built-in mounting ears for space-saving installation.
  • For each screen, just add an AVX-DVI-FO-MINI-RX receiver.

Technical Specifications

General
Fiber Transmission Power -9 dB for output
Fiber Wavelength 1310/1550 nm (dual wavelength)
Power Passive
RoHS Yes
Item Specifications
Connectors Fiber: Input: (1) LC; Output: (8) LC
Dimensions 1.25"H x 4.7"W x 6.25"D (3.2 x 11.9 x 15.9 cm)
Weight 0.7 lb. (0.3 kg)
Product works with:
  • Mini Extender Kit for DVI-D and Stereo Audio over Fiber (AVX-DVI-FO-MINI)
  • Mini Extender Receiver Only for DVI-D and Stereo Audio over Fiber (AVX-DVI-FO-MINI-RX)
  • 2-Port Daisychainable Optical Splitter for AVX-DVI-FO-MINI Extender Kit (AVX-DVI-FO-SPCS)
  • Single-Mode, 9-Micron Duplex Fiber Optic Cable, LC-LC (EFN310-LCLC)
  • 10-Gigabit Multimode, 50-Micron Fiber Optic Cable, Zipcord, LC-LC (EFNT010-LCLC)
