4-Port 2K DisplayPort KVM Switch w/ Audio, Cables and USB 3.0 Hub

B004-DPUA4-K

$560.00$437.50
Save $122.50
FREE Shipping on orders over $100

Control 4 DisplayPort computers using one DisplayPort monitor, USB keyboard and USB mouse with Tripplite B004-DPUA4-K. Connect USB 3.0 peripherals, such as hard drives and webcams, and share them between computers.

  • Connect peripherals to built-in 2-port USB 3.0 hub
  • Switch among computers via front buttons or keyboard hotkeys
  • Supports digital video resolutions up to 2560 x 1600
  • Supports USB 3.0 data transfer rates up to 5 Gbps
  • Includes all necessary DisplayPort, USB 3.0 and audio cables
  • Compatible with all major operating systems

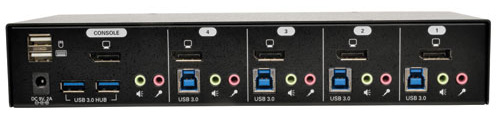

Tripplite B004-DPUA4-K Unit Rear

Access and Control Up to 4 Computers with One KVM Switch

  • Switch among computers using keyboard hotkeys or front-panel buttons
  • Built-in DDC emulator sends console monitor's EDID (Extended Display Identification Data) to connected computers for top video quality without delay
  • Auto Scan feature cycles among computers at regular intervals for at-a-glance observation of activity

Independent Audio Switching

  • 3.5 mm mini-stereo speaker and microphone jacks allow sharing of audio equipment among computers
  • Listen to audio files on one computer while accessing another computer
  • Supports 2-channel stereo audio

Independent USB 3.0 Peripheral Sharing

  • 2-port USB 3.0 SuperSpeed hub allows connection of peripherals, such as webcams, flash drives, printers and scanners
  • Print documents from one computer while accessing another computer
  • Supports USB 3.0 data transfer rates up to 5 Gbps
  • Backward compatible with USB 2.0 and USB 1.1 devices

Compatible with All Major Operating Systems

  • Easy to set up with no software or drivers to install
  • Supports digital video resolutions up to 2560 x 1600, including 1080p
  • Works with Windows, Mac, Linux and Sun
  • All necessary cables included

Tripplite B004-DPUA4-K Specifications

General
Device TypeKVM / audio / USB switch - 4 ports
Enclosure TypeDesktop
Ports4 x KVM / audio / USB
KVM Local Users Qty1 local user
Keyboard / Mouse InterfaceUSB
Max Resolution2560 x 1600
Expansion / Connectivity Interfaces4 x DisplayPort input
x keyboard (USB) - Type A
4 x USB 3.0 - Type B
1 x DisplayPort output
1 x mouse (USB) - Type A
4 x microphone output - mini-jack
1 x microphone input - mini-jack
4 x headphones input - mini-jack
1 x headphones output - mini-jack
2 x USB 3.0 - Type A
PowerAuto-sensing 100 to 240VAC, 50 / 60Hz
Power DeviceExternal power adapter (included)
Voltage RequiredAC 120/230 V ( 50/60 Hz )
Warranty1 Year Warranty - Sales & Support
