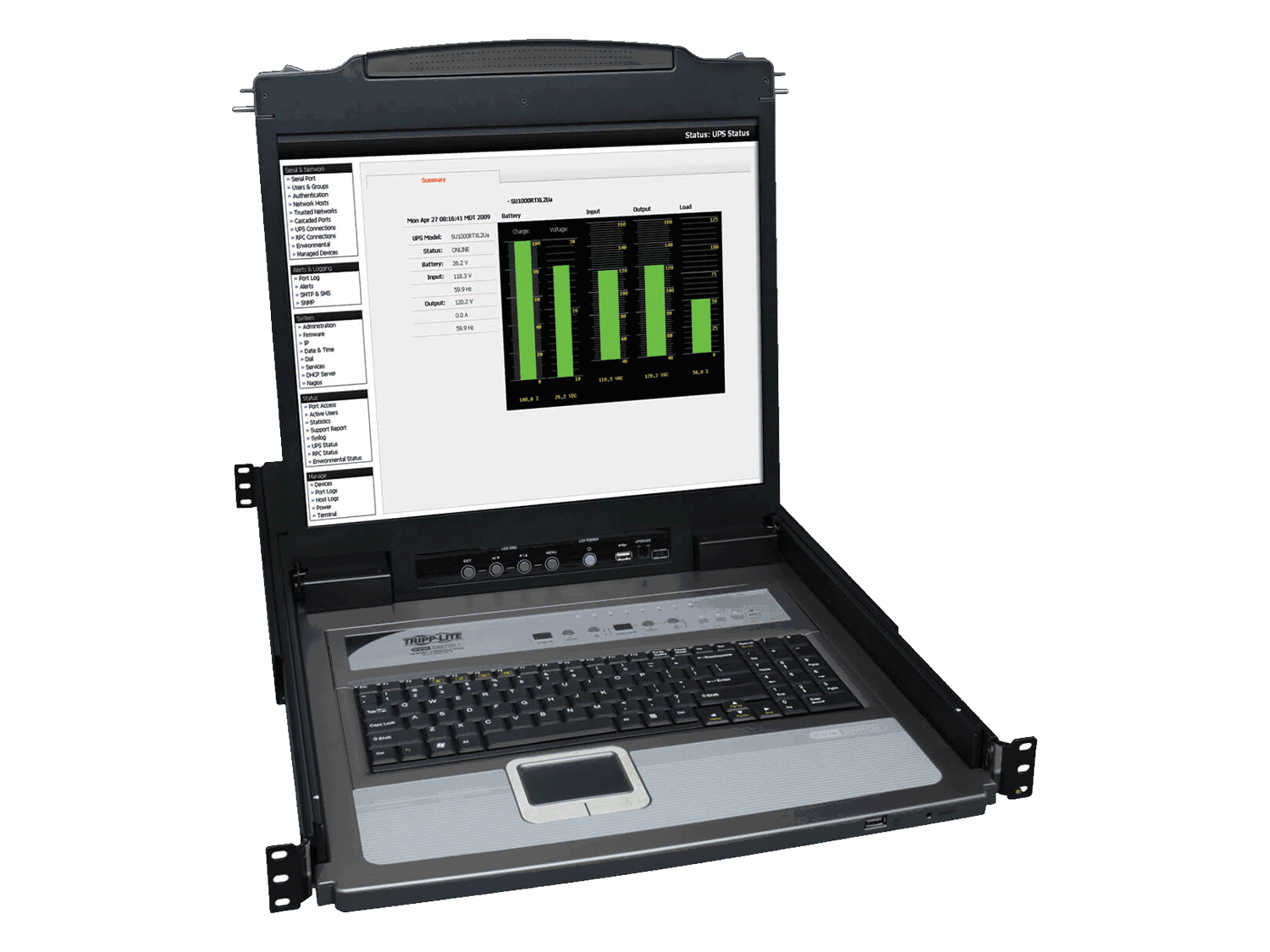

NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables


Save $810.94
FREE Shipping on orders over $100

About TrippLite's B020-U08-19-K

Control up to 8 computers with a single KVM switch with integrated console. This KVM switch is a smart solution for secure and centralized server control that saves rack space and money.

  • Occupies just 1U of space in a rack-mountable drawer
  • 19" LCD screen supports video resolutions up to 1280 x 1024
  • Simplifies IT tasks with easy switching between all 8 ports
  • Provides 2-level password security (administrator and user)
  • Combo cables (included) connect to PS/2 or USB servers
  • 1-year limited warranty

B020-U08-19-K Diagram

B020-U08-19-K Features

  • Saves Valuable Space and Money
    • Combines an 8-port KVM switch, 19" LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
    • Mounts into 19"-wide rack, 26"-38" deep
    • Control up to 8 servers from a single, easily accessible console - ideal when rack space is at a premium
    • Includes eight P778-Series cables that support computers with either PS/2 or USB connections
    • Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
    • Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server
  • Simplifies IT Tasks
    • Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
    • Hot pluggable; add or remove computers without having to power down the switch
    • Auto-scan mode automatically sequences through all active ports that are accessible to the user
  • Large 19" LCD
    • Extra-wide display makes multitasking easier
    • Supports video resolutions up to 1280 x 1024
    • DDC emulation allows optimal output to the LCD
  • Multi-Level Password Security
    • Enhances security by limiting access to an administrator and up to 4 local users
    • Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed
  • Expandability and Long-Lasting Reliability
    • Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
    • A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a B051-000 IP Remote Access Unit
    • An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers
    • Compatible with all major operating systems for easy integration into your existing structure
    • Firmware is upgradable with included cable and utility
    • Heavy-duty steel housing stands up to frequent use

TrippLite B020-U08-19-K Specifications

UPC Code 037332150776
Console Yes
Max CPU 8
Technology PS/2; VGA/SVGA
Number of Monitors Supported 1
Max Number of Ports (Entire Chain) 64
Extended Mode No
Mirror Mode No
AC Power Adapter Plug(s) NEMA 1-15P North America
AC Power Adapter Input Specs (V / Hz / A) 100-240V / 50/60Hz / 1A
AC Power Adapter Cord Length (ft.) 6
AC Power Adapter Cord Length (m) 1.8
Nominal Input Voltage(s) Supported 100V AC; 110V AC; 115V AC; 120V AC; 127V AC; 140V AC; 200V AC; 208V AC; 220V AC; 230V AC; 240V AC
AC Power Adapter Cord Length (ft.) 6
Input Frequency 50/60Hz
Input Current 120V (0.8A) / 230V (0.4A)
Power Consumption (Watts) 28.50
Power Consumption Detail (28.5W at 120V, 60Hz) / (29.1W at 230V, 50Hz)
Color Black
Material of Construction Metal; Plastic
Cable Jacket Color Black
Included Mounting Accessories Yes
LCD Monitor (in.) 19
Rackmountable No
Shipping Dimensions (hwd / in.) 5.00 x 26.10 x 32.50
Shipping Weight (lbs.) 43.00
Unit Dimensions (hwd / in.) 1.750 x 19.000 x 27.000
Unit Weight (lbs.) 30.6
Operating Temperature Range 32° to 122°F (0° to 50°C)
Storage Temperature Range -4° to 140°F (-20° to 60°C)
Relative Humidity 0% to 80% RH, Non-Condensing
Operating Temperature 32° to 122°F (0° to 50°C)
BTUs 26.1 BTUs at 120Vac/ 27.2 BTUs at 220Vac
Hotkey Yes
Port Control Push Buttons, Hotkeys, OSD Mouse Switching
IP Remote Access No
Number of Ports 8
Computer/Server Ports SPHD-18 (VGA, PS/2, USB)
Daisy-Chain Port Yes
Firmware Upgrade Port Yes
PC/Server Connections PS/2; USB; VGA
Side A - Connector 1 (8) HD18 (FEMALE)
Side B - Connector 1 (1) HD18 (MALE)
Side B - Connector 2 (1) DB25 (MALE)
Side B - Connector 3 (1) RJ11 (FEMALE)
Side B - Connector 4 (2) USB A (FEMALE)
Features & Specifications
USB Specification USB 2.0 (up to 480 Mbps)
NIAP-Certified Secure No
Number of Users 1
Autoscan (Y,N) Y
Autoscan Duration 1-255 Seconds
Standards and Compliance
Certifications EN 60950-1; CAN/CSA C22.2; CAN/CSA-C22.2 No. 60950-1 (Canada); cUL Listed; UL 60950-1; UL Listed
Compliance RoHS; CE (Europe); FCC Part 15 Class A (USA); Trade Agreements Act (TAA)
Product Warranty Period (Worldwide) 1-year limited warranty
