Tripp Lite IP Remote Access Unit



Replaced by:
Alternative options: Contact Us

Tripp Lite's B050-000, IP Remote Access Unit, offers convenient and economic remote KVM access and control via LAN or Internet. It captures, digitizes, and compresses video data and transmits them, with keyboard and mouse signals, to and from a remote computer.  This IP remote provides a non-intrusive solution for both remote access and control. The remote access and control software runs on its embedded processors only, but not on mission-critical servers, so that there is no interference with server operation or even impact on the network performance.  The B050-000 may be accessed using a standard Java enabled web browser. You may use the HTTP protocol, or, a secure encrypted connection via HTTPS. Just enter the configured IP address of the B050-000 into your web browser. There is only one user who has unrestricted access to all of the B050-000 features.

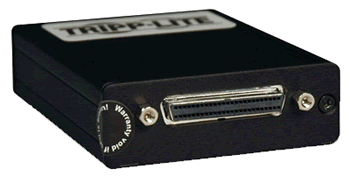

Tripp Lite IP Remote Unit Backside
Tripp Lite IP Remote Unit Backside

Tripp Lite B050-000 Features:

  • KVM access (keyboard, video, mouse) over IP or analog telephone line
  • Works with Microsoft Internet Explorer 5.0 or higher
  • Senses video resolution automatically for the best possible screen capture
  • High-Performance mouse tracking and synchronization
  • Features 256-bit SSL encrypted security
  • Additional port to connect a local user console for direct analog access to the KVM switch
  • Flash - upgradeable firmware

Tripp Lite B022-016 Package Includes:

  • (1) B050-000 Base unit w/CD-ROM
  • (1) External Power supply
  • (1) KVM cable
  • (1) Null Modem Cable

Tripp Lite B022-016 Specifications:

Height 0.75 in. (1.90 cm.)
Width 2.75 in. (6.98 cm.)
Depth 3.75 in. (9.52 cm.)
Ports 5
Connector A DB9 (male)
Connector B DB9 (male)
KVM Connector 1 HD15 (female)
KVM Connector 2 HD15 (male)
Input Connector RJ45 (female)
Connector C MiniDIN6 (female)
Connector D MiniDIN6 (female)
CPU Connector 1 MiniDIN6 (female)
CPU Connector 2 MiniDIN6 (female)
UPC / EAN Barcode icon
UPC 37332121530
EAN 037332121530
