Avocent Cyclades CS 16 Port Serial Console Server



Recommended replacement: NTI SERIMUX-S-16
Alternative options: Contact Us

The Cyclades CS4016 is a 16 port console server which simplifies and consolidates access to serial devices with convenient management remotely via an onboard Web interface or at the rack through the local console port. Consolidated access to serial devices such as servers (UNIX, Linux and Solaris), routers, switches, public branch exchange (PBX), telecommunications equipment (DS/CSU) and serial power devices eases management complexities in medium to large server rooms.

Cyclades CCS4016 Console Server Backside
Cyclades CCS4016 Console Server Backside

Cyclades Console Server Features:

  • Operating Systems: Linux
  • Accessibility: Remote (IP and dial up via external modem) and local (console port) provides accessibility from anywhere
  • CAT 5 compatible adapters for simpler cabling (sold separately)
  • Security options for verifying users:
    • SSHv1 and SSHv2, Local
    • Radius, Active Directory and LDAP authentication methods
    • Local backup user authentication support
    • PAP/CHAP authentication (for dial-up lines)
    • Separate authentication to access ports and console server
    • User access lists per port
    • System event syslog
  • Advanced Console Management:
    • Sun break-safe (Solaris Ready certified)
    • Break-over SSH support
    • Offline data buffering - local or remote (NFS/Syslog)
    • Timestamp for data buffering
    • Unlimited number of simultaneous sessions Simultaneous access on the same port (port sniffing)
    • Event notification (email, pager, SNMP trap)
    • Global time zone support
  • Multiple Port Access Options:
    • Directly by TCP port, IP address or server name Telnet/SSH with menu
    • Simultaneous Telnet and SSH access
    • Bi-directional Telnet
  • Advanced System Management:
    • Configuration wizard for first-time users
    • Command line interface (Linux Shell)
    • Web Management Interface (HTTP/HTTPS)
    • SNMP
  • Upgrades
    • Flash upgradeable
    • TFTP support for network boot
  • Additional Protocols Supported:
    • DHCP for dynamic IP address assignment
    • PPP/SLIP for dial-up
    • NTP for time server synchronization
    • RFC2217 support for remote serial port access

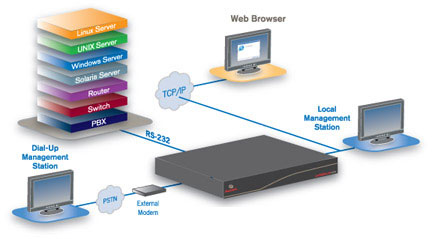

    Cyclades CS Application Diagram
    Cyclades CS Application Diagram

Cyclades CCS4016 Specifications:

Height 1.75 in. (4.45 cm.)
Width 17.0 in. (43.2 cm.)
Depth 8.5 in. (21.6 cm.)
Weight 6.4 lbs. (2.9 kg.)
Operating Temperature 50 to 112 F (10 to 44 C)
Storage Temperature -40 to 185 F (-40 to 85 C)
Humidity 5% to 90% noncondensing
Power Internal 100-240VAC, 50/60 Hz
Operating System Linux
Approved Agency FCC Part 15 Class A, EN55022, Class A (CE), EN55024, UL/cUL, TUV/GS, Japan VCCI V3/2003.4, BSMI,CB Scheme (IEC 60950), MIC, S-Mark, ICES-03,-Tick, Solaris Ready
Question: Is there a replacement for the CS4016 system?
Answer: The ACS6016 series would be the closest. They can be found on this page: https://www.kvm-switches-online.com/console-server-16.html, or you can view the whole ACS 6000 series here: https://www.kvm-switches-online.com/avocent-acs-6000.html.

Question: What is End of Life of CS4016
Answer: Thank you for your inquiry,

As of March 31, 2011, the Avocent CCS4016 has been put end-of-life (EOL - stopping of production). The CCS4016 is now fully discontinued without left-over stock. The recommended replacement is the Avocent ACS6000-Series Serial Console Servers.

If you would like a recommendation based on your application, please feel free to contact your KVM Switches Online sales representative.
