Aten Cat5 KVM Extender

CE220

$229.95

Discontinued
Replaced by: ATEN CE250A
Alternative options: Contact Us

The Aten MasterView CE220 is a RJ45/CAT5 Console Extender.  The CE220 Console Extender System allows access to a computer system from a remote console.  This KVM extender is perfect for factory and construction sites, or any type of installation where the console needs to be kept in a conveniently accessible location, but you want the system equipment to reside in a safe place - away from dust, dirt, and harsh environmental influences. The Aten CE220 is also useful for control and security purposes, where you can have the system unit in a secure area at the same time that you put the console in a location that offers convenient access. The KVM Console Extender provides the ideal means to access the remote system box, since it improves on previous designs by using inexpensive Category 5e UTP cable - the kind commonly used in Ethernet networks - instead of bulkier, more expensive, standard cables.

Category 5e cabling makes for a much neater, more convenient, more reliable data transfer connection. Setup is as easy as can be - simply connect the PC system the Local Module; run the UTP cable to the Remote Module (up to 150 m away); and plug the keyboard, mouse and monitor into the Remote Module. Note: You can control numerous remote systems from a single console by combining this unit with a MasterView KVM Switch.

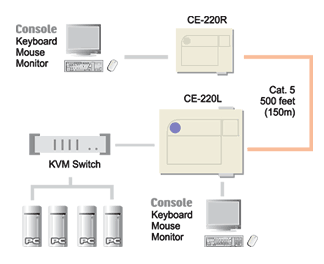

Aten MasterView CE220 KVM Extender Diagram
Aten MasterView CE220 KVM Extender Diagram

Aten CE220 Features:

  • Control your computer and KVM from up to 500 ft (150m) away
  • Uses inexpensive category 5e UTP cable
  • Suitable for PS/2 computers
  • Local and remote consoles

Aten CE220 Package Includes:

  • 1 x Local Extender Unit
  • 1 x Remote Console Unit
  • 1 x Custom KVM Cable
  • 2 x Power Adapters
  • 1 x User Manual

Aten CE220 Specifications:

Mechanical
Height 1.4 in. (3.5 cm.)
Width 3.9 in. (10 cm.)
Depth 5.1 in. (11.2 cm.)
Weight 3.6 lb. (1.6 kg.)
Remote Module Connectors
Mouse 6 pin mini-DIN Female
Video 5 pin HDB Female
Keyboard 6 pin mini-DIN Female
Unit to Unit 8P8C RJ45 Jack
Local Module Connectors
Mouse 6 pin mini-DIN Female
Video 15 pin HDB Male/Female
Keyboard 6 pin mini-DIN Female
Unit to Unit 8P8C RJ45 Jack
Computer Connections
Direct 1
LED's
On line 1 (Auto Mode)
Power on 1
Housing
Case Plastic
Cable Length 492.1 ft. (150 m.)
Video Resolution 1024 x 768
Function Keys (Local only) Local/Remote Select Pushbutton
Requirements
Monitor 1- VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any PC in the installation
Mouse 1- PS/2 Style Mouse
Keyboard 1- PS/2 Style Keyboard
