USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)

CE920

$1,302.00$1,009.28
Save $292.72
FREE Shipping on orders over $100

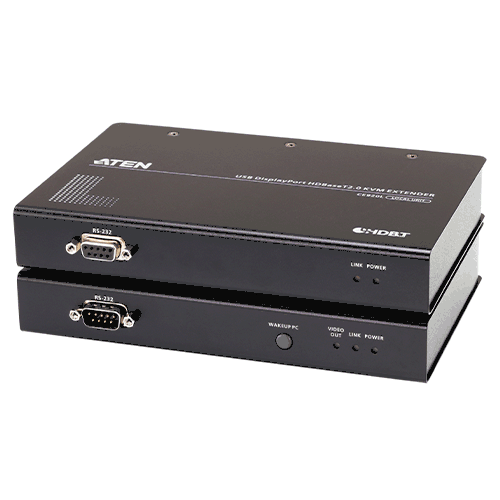

ATEN CE920
USB DisplayPort HDBaseT™ 2.0 KVM Extender (4K@100 m)

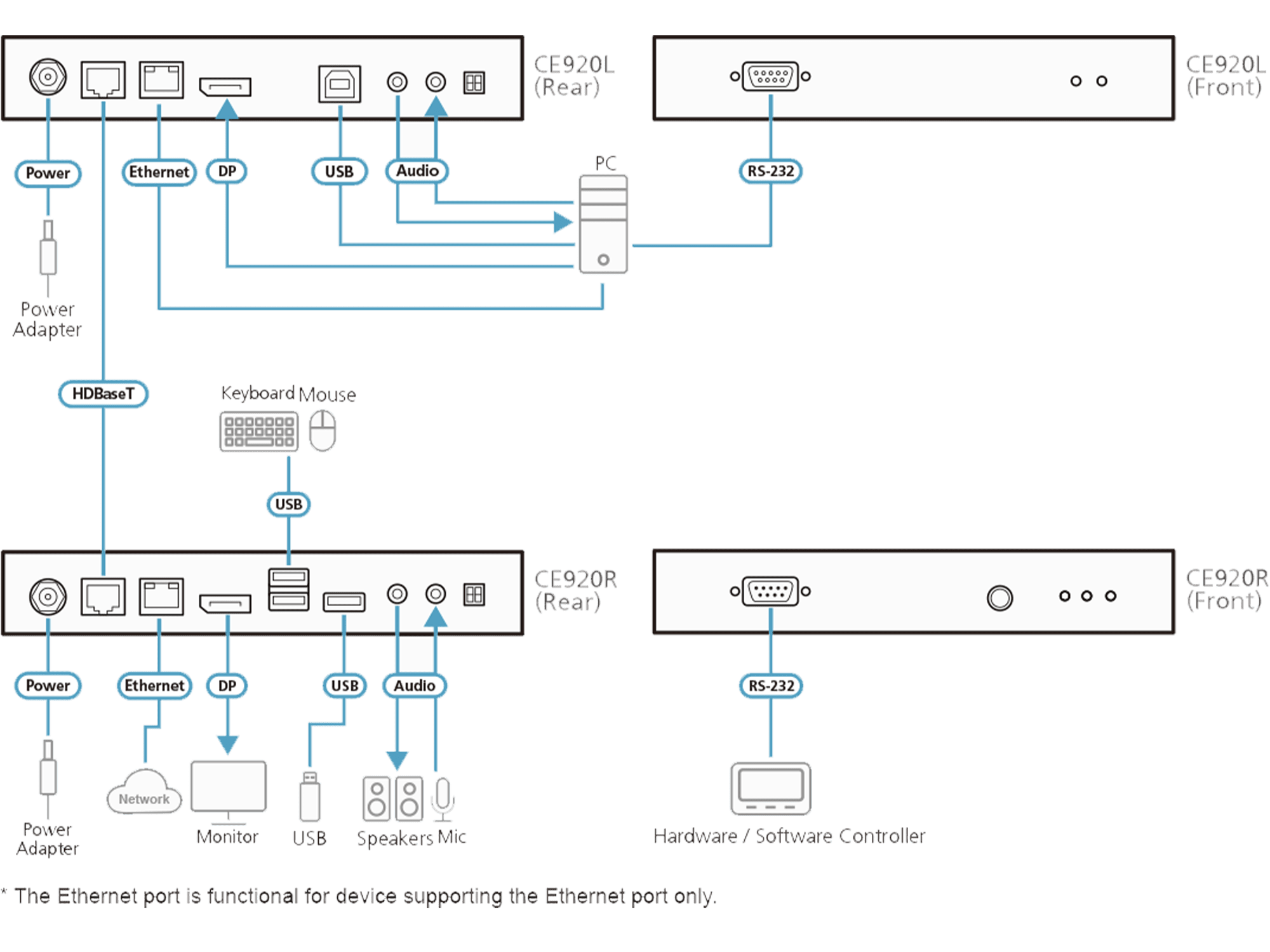

ATEN CE840 Diagram

  • Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
  • EDID Buffer for smooth power-up and the highest quality display
  • Long distance with superior video quality - HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)- HDBaseT™ Long-Reach mode up to 1080P @ 150m
  • Supports individual 2-channel stereo audio and USB 2.0 full speed ports

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to deliver 4K video, stereo audio, USB, Ethernet, and RS-232 signals up to 100 meters using a single Cat6 / 2L-2910 Cat 6 cable. The HDBaseT™ 2.0 guarantees the most reliable transmission on the market as well as enables the long-reach capability that extends full HD 1080P signals up to 150 meters. With an easy cable installation supporting various signals, the CE920 is ideal for applications where convenient remote access is required - such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

CE840 Features

  • Supports HDBaseT™ 2.0 technology
    • Extends video, audio, USB, RS-232, and Ethernet signals via a single Cat6 / 6a / 2L-2910 Cat 6 cable
    • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
    • Status detection and LED indication for HDBaseT™ signal transmission on remote unit
  • EDID Buffer for smooth power-up and the highest quality display
  • Long distance with superior video quality
    • HDBaseT™ Standard mode up to 4K @ 100m (Cat 6 / 6a / 2L-2910)
    • HDBaseT™ Long-Reach mode up to 1080P @ 150m
  • Long Reach mode switch - switches between HDBaseT™ Standard and Long Reach modes in a snap
  • USB 2.0 full speed ports - ensures fast transmission speeds for peripherals
  • HDCP Compatible
  • Supports individual 2-channel stereo audio for high-quality audio applications
  • Supports PC wakeup function via single pushbutton through RS-232 channel*
  • Built-in 8KV / 15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)

ATEN CE840 Ports


Data Sheet

User Manual

ATEN CE920 Technical Specifications

Connectors CE920L CE920R
Console Ports N/A 1 x DisplayPort (Female, Black)
3 x USB Type-A (Female)
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x RJ-45 (Female, Black) †
KVM Ports 1 x DisplayPort (Female, Black)
1 x USB Type-B (Female, White)
1 x Mini Stereo Jack (Female, Green)
1 x Mini Stereo Jack (Female, Pink)
1 x RJ-45 (Female, Black) † 		N/A
RS-232 1 x DB-9 (Female, Black) 1 x DB-9 (Male, Black)
Power 1 x DC Jack (with locking) 1 x DC Jack (with locking)
Unit to Unit 1 x RJ-45 (Female, Black) - HDBaseT 1 x RJ-45 (Female, Black) - HDBaseT
LEDs
Power 1 (Green) 1 (Green)
Link 1 (Orange) 1 (Orange)
Video Output N/A 1 (Orange)
Switches
Long-Reach Mode 1 x Slide Switch 1 x Slide Switch
Firmware Upgrade 1 x Slide Switch 1 x Slide Switch
Pushbuttons
Wakeup Button N/A 1 x Push Button
Video
Max. Resolution & Distance Up to 4K @ 90 m (Cat 5e) / 100 m (Cat 6 / 6a / ATEN 2L-2910 Cat 6)
1080p @ 100 m (Cat 5e / 6 / 6a)
*4K supported: 4096 × 2160 / 3840 × 2160 @ 30 Hz (4:4:4)
Power Consumption DC 5 V: 3.99 W DC 5 V: 6.74 W
Environmental
Operating Temperature 0 - 40 °C 0 - 40 °C
Storage Temperature -20 - 60 °C -20 - 60 °C
Humidity 0 - 80% RH, Non-condensing 0 - 80% RH, Non-condensing
Physical Properties
Housing Metal Metal
Weight 0.63 kg 0.64 kg
Dimensions (L x W x H) 18.20 × 12.19 × 2.87 cm
Notes 1) DisplayPort v1.1 supports up to 4K × 2K @ 30 Hz.
2) The CE920-AT supports the Ethernet function, and the CE920-ATA does not.
† The RJ-45 port is functional only when the connected device supports Ethernet.
