ATEN MasterView Max 8-Port KVM Switch w/ Cables


Save $153.17
FREE Shipping on orders over $100

8-Port KVM Switch Kit, PS2/USB, w/Audio, 8 Cables (CS1758KIT)
ATEN's (CS1758KIT) new eight-port MasterView Max is the ideal tool to help reduce redundant hardware. Eight monitors, mice and keyboards are simply too expensive, bulky and inconvenient for most system administrators. Why bother when you can control all eight, or even up to 512 computers with a single keyboard, monitor and mouse? The added audio support allows you to enjoy music while working. Just think of the time, space and money you'll save, and added fun. ATEN New MasterView Max (CS1758KIT) is much more than a simple eight-port KVM switch. The dual interface support allows you to connect both PS/2 and USB computers on the same switch. The multi-platform support allows you to control Windows-based computers, Sun Solaris systems, Linux, or even Macs by a single KVM switch. ATEN extended the multi-platform support by supporting the special keys on both Sun and Mac keyboards. ATEN MasterView Max (CS1758KIT) KVM switch also comes with the ATEN VSE technology, which provides excellent video resolution - up to 2048 x 1536. Built-in AutoScan mode lets you conveniently monitor every attached computer for a specified amount of time, while our On Screen Display (OSD) technology allows you to assign a unique name to each computer and access it via a smooth menu-driven interface. With its 1U, 19" rack-mountable casing and status-monitoring LEDs, the MasterView-Max is the perfect switch for your server room or any other multi-computer environment. This kit includes four 6' USB KVM cables and four 10' USB KVM cables.

ATEN MasterView Max (CS1758KIT) Features:

  • Dual interface support -supports computers with either PS/2 or USB Keyboard and mouse
  • Multi platform support -Windows, Mac, and Sun Solaris
  • Easy to install -just plug the cables in
  • Audio support allows sharing multimedia speakers and MIC phone
  • Easy to operate - computer selection via front panel switches, intuitive OSD (on screen display), and Hot Keys
  • Security - 2 level password protection for OSD
  • Hot Pluggable - both console side and computer side can hot swappable and auto-detect device change
  • LED Display for easy status monitoring
  • Auto Scan Mode for monitoring all computers
  • Complete keyboard emulation for error free booting
  • Superior video quality; 2048 x 1536; support DDC2B.
  • Total capacity expandable to support 512 computers via 3 levels of cascading
  • Supports special keys on Sun and Mac keyboards
  • Firmware upgradeable through flash ROM
  • Designed for both desktop and rack mount Includes four 6'USB KVM cables and four 10' USB KVM cables

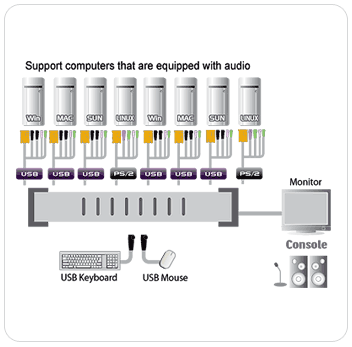

ATEN MasterView Max CS1758KIT Function Diagram
ATEN MasterView Max (CS1758KIT) Function Diagram

ATEN MasterView Max (CS1758KIT) Requirements:

  • Console:
    VGA, SVGA, or Multisync monitor capable of the highest resolution that you will be using on any computer in the installation
    USB mouse
    USB keyboard
  • The following equipment must be installed on each computer:
    VGA, SVGA or Multisync card
    Either a Type-A USB port, or PS/2 mouse and keyboard ports
  • Cables:
    For PS/2 computers, use ATEN part number 2L530XP*
    For USB computers, use ATEN part number 2L530XU*
    *"X" stands for the length of the cable: "1" is 3', "2" is 6', "3" is 10'.)

ATEN MasterView Max (CS1758KIT) Package Content:
1 x 8-port KVM
1 x Power adapter
1 x Firmware upgrade Cable
1 x User manual
1 x Quick Start Guide
4 x 6' USB KVM cables (2L5302U)
4 x 10' USB KVM cables (2L5303U)

ATEN MasterView Max (CS1758KIT) Specifications:

Width 15.0 in. (38.1 cm)
Height 11.0 in. (28.0 cm)
Length 22.0 in. (55.9 cm)
Case Qty. 1
Package Dimensions
Width 21.8 in. (55.2 cm)
Depth 9.0 in. (22.9 cm)
Height 4.8 in. (12.1 cm)
Computer Connections
Direct 8
Daisy Chain or Cascading 512
Selected 8 (Green)
On Line 8 (Orange)
Console Connectors
Audio 1 x Stereo
Flash ROM Upgrade RJ11
Mouse 1 x USB Type A
Microphone 1 x Microphone
Monitor 1 x HDB15 Female
Keyboard 1 x USB Type A
Voltage 5V DC
Amps 2.6A
Case Wt. 12.5 lb. (5.6 kg)
Package Wt. 8.5 lb. (3.8 kg)
Unit Wt. 5.5 lb. (2.5 kg)
Height 1.8 in. (4.4 cm)
Depth 6.0 in. (15.2 cm)
Width 17.0 in. (43.2 cm)
CPU Connectors
Keyboard, Mouse, and Monitor 8 x SPDB15 Female
Audio 8 x Stereo
Microphone 8 x Microphone
Video Resolution Up to 2048 x 1536 @ 60Hz; DDC2B
Power Adaptor 5V DC, 2.6A
IDs 0 - 80% RH
Power Consumption DC 5V, 3.4W
Storage Temperature -4F~140F (-20C~60C)
Computer Interface USB or PS/2
Port Selection Hot keys, OSD, and push buttons
Operating Temperature 32F~122F (0C~50C)
UPC / EAN Barcode icon
UPC 672792151248
EAN 0672792151248
