Aten CubiQ 2-Port HDMI KVM With USB Hub & Integrated Digital Audio
CS1792
Save $62.27
Download the
CS1792 Manual (PDF)
With its unique design and innovative features, the ATEN CubiQª CS1792 HDMI KVMPª Switch with USB 2.0 hub, provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. CS1792 Manual (PDF)
The ATEN CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSyncª technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the home or office, the ATEN CubiQª CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
In the box:
1x CS1792 USB 2.0 HDMI KVMPª Switch
2x Custom HDMI KVM Cable Sets
1x Firmware Upgrade Cable
1x Power Adapter
1x USB-to-PS/2 Converter
1x User Instructions

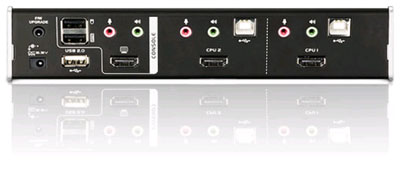

ATEN's CS1792 Rear Connections
CS1792 Hot Key Sequence
| Hotkey Mode (Invoke Hotkeys) | Port Selection | Invoke OSD |
| Default: [Num Lock] + [-] | Default: [Scroll Lock] [Scroll Lock] [Port #] [Enter] | Default: None |
| Alternate: [Ctrl] + [F12] | Alternate: [Ctrl] [Ctrl] [Port #] [Enter] | Alternate: None |
Features of the CS1792
- One USB console controls two HDMI-interface computers and two additional USB devices
- 2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification
- Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys
- HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant
- Dolby True HD and DTS HD Master Audio support
- Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)
- Power on detection - If one of the computers is powered off, the CS1792 will automatically switch to the next powered-on computer
- Supports widescreen resolutions
- Multiplatform support - Windows, Linux, and Mac
- Console mouse port emulation/bypass feature supports most mouse driver and multifunction mice
- Video DynaSyncª - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
- Complete keyboard emulation for error-free booting
- Mac keyboard support and emulation*
- Auto Scan Mode for monitoring all computers and HDMI devices
- Firmware Upgradable
* 1. PC keyboard combinations emulate Mac Keyboards
2. Mac keyboards only work with their own computers

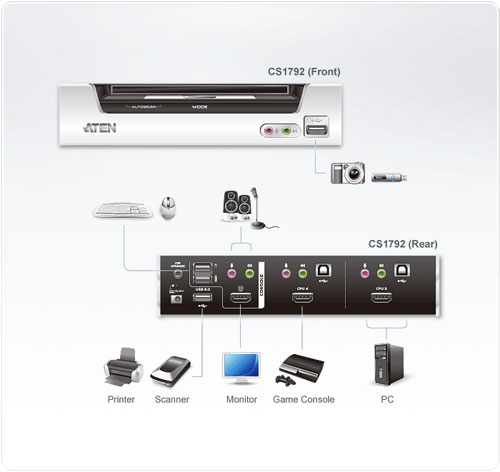

Typical Application Diagram
CS1792 Specifications:
| Mechanical | |
| Width | 8.1 in. (20.50 cm.) |
| Height | 1.77 in. (4.50 cm.) |
| Depth | 2.9 in. (7.3 cm.) |
| Weight | .92 lbs. (0.42 kgs.) |
| Computer Connections | 2 |
| Port Selection | Front Panel Pushbuttons, Hotkeys |
| Connectors | |
| Console Ports | Keyboard- 1 x USB Type A Female (Black; rear panel) Video 1- 1 x HDMI Type A Female (Black) Mouse- 1 x USB Type A Female (Black; rear panel) Speaker- 2 x Mini Stereo Jack Female (Green; 1 x front, 1 x rear) Mic.- 2 x Mini Stereo Jack Female (Pink; 1 x front, 1 x rear) |
| KVM Ports | Keyboard/Mouse- 2 x USB Type B Female (White) Video- 2 x HDMI Type A Female (Black) Speaker- 2 x Mini Stereo Jack Female (Green) Mic.- 2 x Mini Stereo Jack Female (Pink) |
| Power | 1 x DC Jack |
| USB 2.0 Hub | 2 x USB Type A Female (White: 1x front panel: 1x rear panel) |
| F/W Upgrade | 1 x 4-conductor 3.5mm Jack (Black) |
| Switches | |
| Selected | 3 x Pushbutton |
| LEDs | |
| KVM | 3 (Orange) |
| Audio | 3 (Green) |
| USB | 3 (Green) |
| Emulation | |
| Keyboard/Mouse | USB |
| Video | 1080p (HDMI)/1920x1200 (DVI) |
| Scan Interval | 1-99 secs. (Default: 5 secs) |
| Power Consumption | DC 5.3 V, 3.2 W |
| Environment | |
| Operating Temperature | 0-50C |
| Storage Temperature | -20-60C |
| Humidity | 0-80% RH, Non-condensing |
| Physical Properties | |
| Housing | Metal |
UPC 672792398131
EAN 0672792398131
Question: how i can turn off the beep when i switching the port?
Answer: Try invoking the Hot Key Mode (HCM):
1. Press and hold down [NUM LOCK] key
2. Press and release [-].
3. Release [NUM LOCK])
Once in HKM, press and release [B] to toggle the beeper off.
See the manual for more detailed information on invoking the HKM and configuring the switch.
Question: Does this support a wireless mouse and keyboard set up?
Answer: Thank you for your inquiry,
It is possible that the Aten CS1792 would support Wireless Keyboard and Mouse, but since the KVM vendor does not state explicit support for it, we are unable to guarantee compatibility in a specific environment.
For more information on using a Wireless Keyboard / Mouse with a KVM Switch, please refer to our Wireless Keyboard & Mouse with a KVM Switch Guide.
Please let us know if there is anything else we can ever help you with!
Answer: Try invoking the Hot Key Mode (HCM):
1. Press and hold down [NUM LOCK] key
2. Press and release [-].
3. Release [NUM LOCK])
Once in HKM, press and release [B] to toggle the beeper off.
See the manual for more detailed information on invoking the HKM and configuring the switch.
Question: Does this support a wireless mouse and keyboard set up?
Answer: Thank you for your inquiry,
It is possible that the Aten CS1792 would support Wireless Keyboard and Mouse, but since the KVM vendor does not state explicit support for it, we are unable to guarantee compatibility in a specific environment.
For more information on using a Wireless Keyboard / Mouse with a KVM Switch, please refer to our Wireless Keyboard & Mouse with a KVM Switch Guide.
Please let us know if there is anything else we can ever help you with!
