ATEN Multi-console 8 port PS/2 KVM Switch
Recommended replacement: CyberView M-804
Alternative options: Contact Us
CS228 Hot Key Sequence
|Port Selection||Invoke OSD|
|Default: None||Default: None||Default: [Scroll Lock] [Scroll Lock]|
|Alternate: None||Alternate: None||Alternate: [Ctrl] [Ctrl]|
ATEN CS428 Multi-console 8 port PS/2 KVM Switch
ATEN CS428 is a high-efficiency KVM switch which provides the most efficient solution. Its console with 2 built-in PS/2 and 2 DB-25 allows users to control 8 servers either alone or by sharing. The built-in DB-25 of CS428 can reduce cable derangements in component rooms and can enhance signal quality and operation efficiency.
ATEN CS428 Multi-console 8 port PS/2 KVM Switch Features and Benefits:
- 4 consoles control 8 computers
- Up to two users can operate up to 64 computers (via cascade to CS-138A, CS-9138, CS-128A) at the same time
- Each console has its own access control.
- Two level password security (one administrator; four user passwords).
- Administrator can access any computer completely independently of the other users.
- Each user has his own access control list.
- Port selection via OSD (on screen display).
- Auto expansion of the OSD port list for cascaded
- Supports 1920 x 1440 resolution; DDC2B (display data channel 2).
- Audio (microphone and speaker) support.
- Special design for easy stacking.
- Rack mountable in a 19" (1U) System Rack.
- OS Compatibility:DOS、WIN98、WIN ME、WIN 2K、WIN NT、WIN 2003、WIN XP、LINUX、Mac OS 8.6/9/10 and SUN Solaris 8/9.
- For more information about KVMs which can connect to CS-228, see Compatible KVM Table.

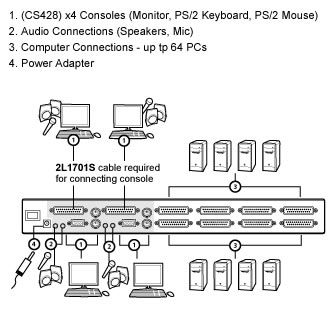

ATEN CS428 Multi-console 8 port PS/2 KVM Switch Function Diagram
ATEN CS428 Multi-console 8 port PS/2 KVM Switch Package Content :
1x CS-428 KVM Switch
2x Console Cable (2L-1701S)
1x Power Adapter
2x Rack Mounting Brackets
1x User Manual
ATEN CS428 Multi-console 8 port PS/2 KVM Switch Specifications:
|Max|| 64 (via cascade to CS-138A, |
|Computer Port Selection||OSD|
|Connectors||Console (1.2)||Keyboard||2 x Mini Din- 6 Female (Purple)|
|Video||2 x HDB-15 Female (Blue)|
|Mouse||2 x Mini Din- 6 Female (Green)|
|Speaker/Mic|| 2 x Mini Stereo Jack Female (Green) |
2 x Mini Stereo Jack Female (Pink)
|Console (3.4)||Keyboard||2 x 25 Pin D-Type Female (Black)|
|Computers||8 x 25 Pin D-Type Female (Black)|
|Power Adapter Jack||1 x DC Jack|
|LEDs||On Line||8 (Orange)|
|VGA Resolution||1920 x 1440; DDC2B|
|Scan Interval||3,5,10,15,20,30,40,60 seconds|
|Power consumption||DC9V, 7.2W|
|Dimensions ( L x W x H )||45 x27.5 x 6.7cm|
