ATEN 2-Port Free-Standing Slim KVM Switch (CS72A)

CS72A

$0.00

Discontinued
Recommended replacement: ATEN CS82U
Alternative options: Contact Us

ATEN (CS72A) 2-Port Free-Standing Slim KVM Switch
The new ATEN CS72A Masterview Free-standing KVMs allow you to control multiple computers from a single PS/2 keyboard, PS/2 mouse and monitor. The ATEN CS72A unit has many advanced features such as keyboard and mouse emulation, hot pluggable, excellent video quality, power-on detection, auto scan, etc. The custom designed DB15 connector allows this unit to be slim and attractive. This unit is designed to be either lying flat or standing up on your desk, whichever suits your application. All cables are included.

ATEN (CS72A) 2-Port Free-Standing Slim KVM Switch Features:

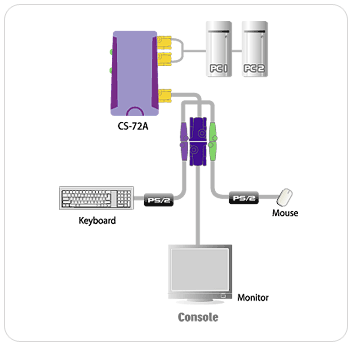

  • Control 2 computers from a single PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse)
  • Compact vertical-standing design - custom connector layout
  • Cables included SPDB-15 connectors for KVM cable connection to the computers & console
  • Power On detection - automatically switches to the first powered
  • On port - automatically switches to the next powered on port of the current one is shut down
  • Auto scan function to monitor computer operation LED display for easy status monitoring
  • Easy installation- no software required
  • Hot pluggable - add or remove computers without powering down the switch
  • Keyboard and mouse emulation for error free booting
  • Caps lock, num lock, and scroll lock states are saved and restored when switching
  • Supports Microsoft IntelliMouse and the scrolling wheel on most mice
  • Superior vide quality - up to 1920 x 1440; DDC, DDC2, DDC2B Non powered

ATEN (CS72A) 2-Port Free-Standing Slim KVM Switch
ATEN (CS72A) 2-Port Free-Standing Slim KVM Switch

ATEN (CS72A) 2-Port Free-Standing Slim KVM Switch Requirements:
Computers with PS/2 mouse connections, PS/2 or AT keyboard connections, and HDDB15 VGA connection.

ATEN (CS72A) 2-Port Free-Standing Slim KVM Switch Package Content:
1 2-port Free-Standing Slim KVM switch 2 sets of KVM cables 1 installation manual 1 quick start guide 1 product registration card

ATEN (CS72A) 2-Port Free-Standing Slim KVM Switch Specifications:

Case
Width 13 in. (33.02 cm.)
Height 8 in. (20.32 cm.)
Length 19.75 in. (50.165 cm.)
Case Qty. 10
Package Dimensions
Height 2.30 in. (5.42 cm.)
Depth 7 in. (17.78 cm.)
Width 9.5 in. (24.13 cm.)
Weight
Package Wt. 2 lbs. (0.90 kg.)
Case Wt. 20.25 lbs. (9.1125 kg.)
