CAT5 Audio/Video 16x64 Matrix with RS-232 Control


Save $5,740.04
FREE Shipping on orders over $100

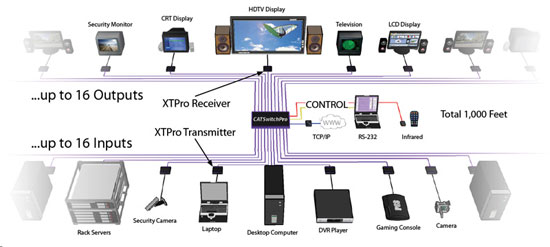

CATSwitch routes audio and video signals from serveral different video sources out to multiple displays and speakers. CATSwitch is capable of connecting to as many as 16 video sources via transmitters and 64 video displays via receivers with a maximum extension of 1000 feet between the transmitter and receiver units.


  • Wall Displays
  • Audio Visual Presentation
  • Digital Media
  • Shopping centers
  • Airports
  • Security
  • Dealer rooms
  • Point of Sale
  • Control rooms
  • Hotels

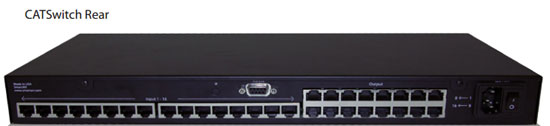

prod back


  • Supports high resolution video up to 1920x1200
  • High quality audio switching
  • Infrared, RS232 and TCP/IP control
  • PC Windows software control
  • Integral UTP distribution
  • 1U rackmounted chassis
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8
  • Maximum extension of 1,500 feet (500m) between the local and remote units
  • HDTV compatible. (720p, 1080i,1080p)
  • 300 MHz bandwidth
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation
  • Compatible with Line Level Stereo Audio Signals
  • High ground loop immunity
  • Built-in power surge and transient protection
  • Designated trimmer in the remote unit to compensate for length


SmartAVI CATSwitch Specifications

Input/Output 16x64
Height 5.23 in. (13.28 cm)
Width 19 in. (48.26 cm.)
Depth 18 in. (45.72 cm.)
Weight22  lbs.
Video Bandwidth250MHz
Input Signal Level1 Volt pk-pk into 75R
Output Impedance100 Ohms
Input Impedance75R OHms
Audio Bandwidth20KHz
