CAT5 Audio/Video and IR/RS232 16x48 Matrix with RS-232 Control

CSWX16X48S

$12,999.00$10,129.09
Save $2,869.91
FREE Shipping on orders over $100
smartavi_madeinusa

CATXPro routes audio, video, IR and RS/232 signals from several different video sources out to multiple displays (projectors, monitors, etc.) and speakers. CATXPro is capable of connecting to as many as 16 video sources via transmitters and 16 video displays via receivers with a maximum extension of 1,000 feet between the transmitter and receiver units. A single audio/video output can be routed to one or multiple destinations.

Video is transmitted at a resolution of 1920 x 1200 to insure high resolution images. Buffered video outputs and analog delivery of stereo audio maintains optimum integrity throughout the system. Special remote boxes offer compatibility with Video Composite , UXGA, Component Video and S-Video.

Applications

  • Wall Displays
  • Digital Signage
  • Airports
  • Dealer Rooms
  • Control Rooms
  • Audio/Visual Presentations
  • Shopping Centers
  • Security
  • Point-of-Sale
  • Hotels/Resorts
  • KVM Switch

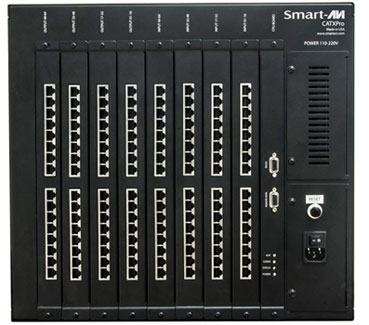

back

Features

  • Supports high resolution video up to 1920x1200
  • High quality audio switching
  • Infrared, RS232 and TCP/IP control
  • PC Windows software control
  • Integral UTP distribution
  • 1U rackmounted chassis
  • Uses easy to install, inexpensive CAT-5/5e/6/7/8
  • Maximum extension of 1,000 feet between the local and remote units
  • HDTV compatible. (720p, 1080i,1080p)
  • 300 MHz bandwidth
  • Compatible with VGA, XGA, Sun, MAC and SGI
  • Sync Format / Polarity Preservation
  • Compatible with Line Level Stereo Audio Signals
  • High ground loop immunity
  • Built-in power surge and transient protection
  • Designated trimmer in the remote unit to compensate for length

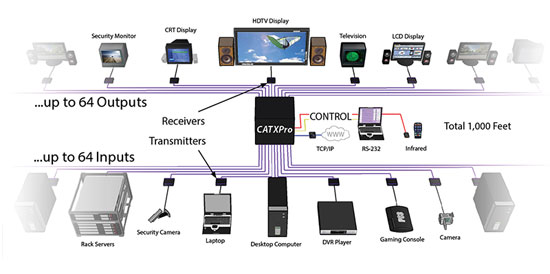

diagram

SmartAVI CATXPro Specifications

Input/Output16x48
Mechanical
Height 15.75 in. (40 cm)
Width 17 in. (43.18 cm.)
Depth 14 in. (35.56 cm.)
Weight20 lbs.
Video Bandwidth250 MHz
Input Signal Level1 Volt pk pk into 75R
Output Impedance100 Ohms
Input Impedance75 Ohms
ConnectorRJ45
Video FormatVGA/SVGA/XGA/WUXGA/RGB/Hv/RGsB
Audio Bandwidth20KHz
PowerInternal 100-240 VAC
UPC / EAN Barcode icon
UPC 813280020831
EAN 0813280020831
