Single-User 12-Port DVI-D, USB 3.0 KVM
CV-1201D
Save $128.00
KVM Family |  4K UHD |  DVI-D |  High-density Cat6 |  VGA Combo |  VGA + USB Hub |
|---|---|---|---|---|---|
| KVM port | HDMI + USB | DVI + USB |  |  | |
| Video | DVI / HDMI / DP / USB-C | DVI-D | VGA / DVI / HDMI / DP / USB-C | VGA | VGA |
| Ports | 8 | 12 | 32 / 16 / 8 | 16 / 8 | 16 / 8 |
| KB / MS | USB | USB | USB / PS2 | USB or PS2 | USB |
| 3840 x 2160 Support |  | -- | -- | -- | -- |
| 1920 x 1200 Support | -- | | -- | | |
| 1920 x 1080 Support | -- | | | | |
| Audio | -- | Analog | -- | -- | -- |
| USB Peripheral Port | -- | -- | -- | -- | 2 x USB 2.0 |
| Local User | 1 | 1 | 1 | 1 | 1 |
| Network IP Access Users | -- | -- | 0 to 2 | 0 to 2 | 0 to 1 |
| Extended Remote Users (500 ft) | -- | -- | 0 to 3 | 0 to 3 | 0 to 1 |
| Multi-user Profile | | | | | |
| Max. Distance (KVM to Server) | 15 Ft / 4.5 M | 15 Ft / 4.5 M | 130 Ft / 40 M | 15 Ft / 4.5 M | 15 Ft / 4.5 M |
| Cascade Level | -- | -- | 8 | 8 | -- |
| 1U Rackmount / Standalone KVM | | | | | |
| KVM module for LCD Console Drawer | | | | | |
| Details | More | More | More | More | More |
The Cyberview CV-1201D is a single-user, 12-port DVI-D KVM with audio for USB 3.0/2.0/1.1 enabled servers. The CV-1201D features a slim, rack mountable 1U chassis (mounting set w/ bracket & screws included) and allows an administrator to control up to 12 DVI-D servers from one keyboard, mouse and monitor setup. Mix and match operating systems with this multiplatform KVM to control PC, Mac and Sun servers running Windows 7, OSX and Linux. The CV-1201D makes an attractive solution to control your high-def DVI-D servers at up to 1920x1200 resolution.
NOTE: Rack mounting kit are included

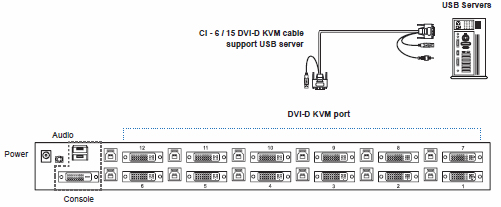

Back of the CV-1201D Unit
CV-1201D Features:
- Affordable 12-port DVI-D KVM with USB and audio
- Single Link DVI-D supports resolutions up to 1920 x 1200
- Support widescreen & native SUN 1152 x 900 resolution
- Multi-platform for PCs, SUN and Mac G3 / G4 Mac / iMac
- Hot pluggable, no software or drivers required
- Support for VESA DDC2B emulation & TMDS signal pass-through
- DC power options available (please call 1-877-586-6654)
- 2 Year Warranty
Front of the CV-1201D Unit
CV-1201D Package Contents:
- (1) CV-1201D KVM Switch
- (1) 1U, 19" mounting kit w/ brackets & screws
- (1) US power cord - for KVM
Note, DC power excludes AC power cord. - (1) 2-Year Manufacturer Warranty
- *Please note, package contents may change with unit 'options'.
CV-1201D Resources:
CV-1201D Datasheet (PDF)
CV-1201D User Manual (PDF)
CV-1201D Specifications:
| Mechanical | |
| Width | 17.4 in. (44.3 cm.) |
| Height | 1.72 in. (4.36 cm.) |
| Depth | 6.7 in. (17.1 cm.) |
| Weight | 6.5 lbs. (3 kegs.) |
| KVM Port | 12 x DVI-D |
| KVM Connectivity | DVI-D/USB 3.0 Connector Combo 4-in-1 KVM Cable, 6 or 15 feet |
| Local Console | 1 x DVI-D (up to 1920x1200) 2 x USB Type A for KB & MS 1 x 3.5mm Stereo Audio |
| Management | Front push button or keyboard hotkey |
| Compatibility | Mix PC, SUN, MAC G3/G4/iMac, IBM, HP, DELL Windows 7/ Vista/ 2003/ XP/ 2000, Linux, Unix |
| Power | 100-240VAC, 50/60Hz 0.3 via IEC type cord (Optional 12V, 24V, 48V DC input available) |
| Regulatory Approval | FCC, CE |
| Environmental | |
| Operating/Storage | 0 to 50C / -5 to 60C |
| Relative Humidity | 90%, non-condensing |
| Shock | 50G peak acceleration (11ms, half-sine wave) |
| Vibration | 58-100Hz/0.98G (11min/cycle) |
CV-1201D KVM Hot Key Sequences
| Function | Hot Key Sequence |
| Previous Port | [Scr Lock] [Scr Lock] [Up] |
| Next Port | [Scr Lock] [Scr Lock] [Down] |
| Specific Port | [Scr Lock] [Scr Lock] [Port #] |
| AutoScan for PC's | [Scr Lock] [Scr Lock] + [S] |
| Enable/Disable Beeper Sound | [Scr Lock] [Scr Lock] [B] |
