CyberView 4K VGA CatX KVM Extender

CV-K101

$693.00$607.00
Save $86.00
Signal: HDMI (4K)
Connectivity: CATx
Resolution: 4K
FREE Shipping on orders over $100

The Cyberview CV-K101 CATx KVM Extender is a HDMI and USB-based KVM Extender. It includes a transmitter-receiver (K101-T/K101-R) pair that enables you to locate a PC in a clean, secure area and access the PC from any convenient, remote location. The remote user (keyboard, monitor, and mouse), connected to the receiver, can be up to 230 feet (70 meters) from the PC using CATx cable. In addition to the remote user, a local user (keyboard, monitor, and mouse) can be connected to the transmitter. Similarly, CV-K101 can be used to extend distances between KVM switches, user consoles, and connected computers

Cyberview CV-K101 Features

  • Extend computer or KVM Switch up to 230ft via a single CATx cable
  • Dual user - local and remote access
  • Integrated 2-port KVM switch - optionally switch between a local and remote PC
  • High resolution HDMI video:
    • 4K (4096 x 2160) @24/25/30Hz
    • 3840 x 2160@60Hz
  • Pure hardware solution makes network independent
  • No software or drivers required

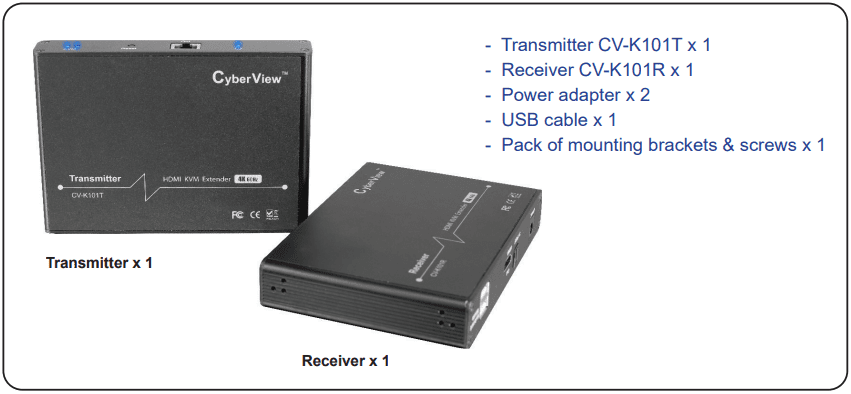

CV-K101 Package Contents

CV-K101 whats included? CyberView CV-K101 Package Contents

  • (1) K101-T KVM Transmitter
  • (1) K101-R KVM Receiver
  • (2) Power cord
  • (1) 2-year standard warranty

CV-K101 Resources

CV-K101 Manual (PDF)

Cyberview CV-K101 Specifications

 TransmitterReceiver
Connectors1 x RJ-45, 1 x Barrel Power Connector, 2 x HDMI, 1 x USB1 x RJ-45, 1 x Barrel Power Connector, 1 x S/PDIF Audio Output, 2 x USB-A
LEDPower (red) & Status (blue)Local & Remote (blue)
EnvironmentRoHS2 & REACH compliantRoHS2 & REACH compliant
Operation Temperature0 ~ 50 C0 ~ 50 C
Storage Temperature-20 ~ 60 C-20 ~ 60 C
Humidity0-80%, Non-Condensing0-80%, Non-Condensing
Dimensions157.8 x 70 x 30.6 mm157.8 x 70 x 30.6 mm
Weight370g370g
PowerFrom attached local computer or optional 12V power adapter12V power adapter
