1U Dual Slide 17" Rack Mount Monitor Keyboard Drawer w/ 16-port PS/2 KVM Switch



Recommended replacement: Cyberview D117-S1601
Alternative options: Contact Us

The D117-1601e is a 1U Dual Slide Rackmount LCD Monitor with 17" Samsung LCD with integrated 1-console (1 x local), 16 port PS/2 DB-15 KVM Switch.  The keyboard is a 104 key notepad keyboard with touchpad mouse and includes 16 6ft KVM cables.  The Dual Slide technology allows the LCD to be left up/open when the rack door is closed.

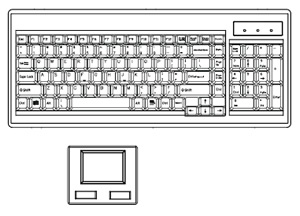

"Ne" style keyboard included with D117-1601e
"Ne" style keyboard included with D117-1601e

D117-1601e Features & Benefits:

  • 1U dual slide rackmount drawer with 17" Samsung Grade A LCD panel
  • Multiple keyboard language selections with touchpad
  • Enhanced aesthetics with molded front panel and two point lock

PS/2 DB-15 KVM Switch Features & Benefits:

  • PS/2 DB-15 KVM with 16 ports in 1U
  • Mix PS/2, USB & SUN with Multi-Platform switch capability
  • Low cost reliable PS/2 based server management
  • No software or drivers required
  • Easy& quick installation
  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover
D117-1601e Rackmount LCD Diagram
D117-1601e Rackmount LCD Diagram
Rackmount Monitor left open
The monitor portion of the D117-1601e can be left open while the keyboard is closed

D117-1601e Specifications:

Height 1.73 in. (44 mm.)
Width 17.4 in. (442 mm.)
Depth25.6 in. (650 mm.)
Weight35 lbs. (16 kg.)
Samsung LCD Monitor
4:3 Screen Size17"
Display TypeActive Matrix TFT
Native Resolution1280 x 1024
Brightness (cd/m2)300
Contrast Ratio1000 : 1
Viewing Angle (H x V)160 / 160
Display Color16.7M
Response TimeTr=1.3 / Tf=3.7
Pixel Pitch (H x V)0.264 / 0.264
KVM Switch
KVM Port16 x RJ-15 connector
KVM CablePS/2 3-in-1 KVM cable, up to 6, 10, 15 & 33 feet
Local Console1 x DB-15 VGA (up to 1600 x 1200), 2 x PS/2 for KB & MS
ExpansionUp to 128 servers by 8-level cascade
CompatibilityMix PCs, SUNs, MACs, IBMs, HPs, DELLs server
Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Power100~240VAC, 50 / 60Hz 0.3A via IEC type cord
(12V / 24V / 48V DC input option)
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory ApprovalFCC, CE
Cables Included16 x CD-6 (6ft KVM cable)
