Avocent Emerge DA1200P PC/VGA Distribution Amplifier

DA1200P

$95.00

Discontinued
For upgrade or replacement options: Contact Us

The Avocent Emerge DA1200P PC/VGA distribution amplifier provides two outputs for use in any application requiring multiple outputs from a single PC or other VGA video source. The video bandwidth in excess of 500 MHz handles computer resolutions up to 2560 x 1600 at distances up to 300 feet from the source without signal deterioration. The DA1200P distribution amplifier provides VESA industry standard DDC (Data Display Channel) bidirectional communications for plug-and-play operation of attached display devices. The small and rugged design is ideal for applications that have space limitations. The DA1200P distribution amplifier is 5VDC powered, and includes a high performance 1m VGA input cable and power adapter.

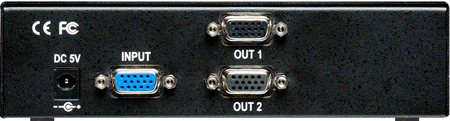

Avocent Emerge DA1200P Backview

Avocent Emerge DA1200P Backview

Avocent Emerge DA1200P Features:

  • Supports Resolutions up to 2560 x 1600
  • Drives Monitors up to 300 Feet Away
  • 500+ MHz Signal Bandwidth
  • Locking DC Power Connector for Security
  • Unit Supports Cascading for Greater Flexibility
  • Dual VGA Outputs

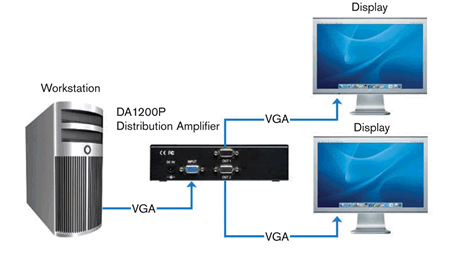

Avocent Emerge DA1200P Application Diagram

Avocent Emerge DA1200P Application Diagram

Avocent Emerge DA1200P Specifications:

Mechanical
Height 1.70 in. (43 mm.)
Width 6.30 in. (160 mm.)
Depth 2.30 in. (58 mm.)
Weight 0.88 lb. (14.1 oz.)
Environmental
Operating Temperature 32°F (0°C) to 104°F (40°C)
Storage Temperature -4°F (-20°C) to 140°F (60°C)
Humidity 10% to 85% (Non-condensing
Power (External Power Supply) 5VDC@2A
Computer Video Input
Signal Type RGBHV, RGBS, RGsB
Connector (1) HD-15 female
R-G-B Level Range 0.5-2.0 Vp-p
Maximum Resolution 2560 x 1600
Connector Video Outputs (2) HD-15 female connectors
General
R-G-B Bandwidth 500+ MHz
Maximum Distance Up to 300 ft (91.44 m) from amplifier using premium grade VGA cable
DDC Capacity DDC1, DDC2, DDC2B (Port 1)
Standards
Amplifier Unit FCC, CE, RoHS
Power Supply UL, CE, CSA, RoHS
Warranty 2 years
