Avocent 8 Port KVM Over IP Switch



Recommended replacement: Raritan DKX3-108
Alternative options: Contact Us

Avocent's DSR800 is a cost effective 8-port KVM switch with remote access capability, designed for server access and control in lower-density applications and distributed locations. This KVM OVER IP switch allows IT administrators to easily troubleshoot, or even reboot a server, at the rack, from the NOC, from their desk or from any location in the world, using standard TCP/IP connections. Patented OSCAR on-screen GUI provides local access and control and Avocent's DSView management software provides secure IP-based access anywhere, anytime.

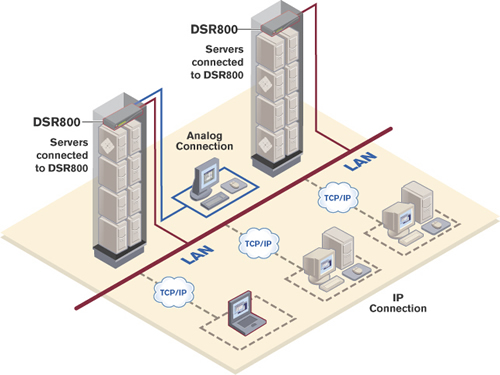

Avocent DSR800-001 Diagram

Avocent DSR800-001 Diagram

Avocent DSR800-AM Features and Benefits:

  • The Avocent DSR800 KVM switch is designed for lower-density applications and distributed locations.
  • A KVM network appliance that combines digital and analog technology
  • A KVM network appliance that combines digital and analogue technology
  • Features connections for eight servers in a 1U chassis
  • Provides analog access at the rack, and digital IP access from anywhere
  • Allows you to troubleshoot or reboot a server no matter where you are
  • Features DSRIQ CAT 5 cabling to reduce cable bulk and provide connectivity from the DSR800 switch to your servers
  • Supports all major server platforms and VT100 serial-based devices
  • Flash-upgradeable for future firmware compatibility
  • The patented OSCAR on-screen graphical user interface provides local access at the rack
  • Works with Avocent DS management software for secure, centralized control of all connected devices:
  • DSView software to access all devices via a standard IP connection
  • DSView also creates and configures your network access environment
  • DSWebview for browser-based remote access to devices
  • DSAuth software for user authentication/permissions, topology and per-device contact information

Avocent DSR800-AM Specifications:

Height 1.75 in. (4.45 cm)
Width 17.00 in. (43.18 cm)
Depth 11.00 in. (27.94 cm)
Weight 8 lbs. (3.6 kg) without cables
Operating Temperature 32 to 104 degrees F (0 to 40 degrees C)
Storage Temperature -4 to 158 degrees F (-20 to 70 degrees C)
Operating Voltage 100 - 240 VAC
Power Frequency 50 - 60 Hz autosensing
Humidity 10-95%, non-condensing
Input 40 W maximum
Supported Hardware
Computers PS/2, Sun, USB
Monitor VGA, SVGA (XGA, XGA-II with adaptor) Maximum resolution Local Port DSR800, DSR1010 & DSR2010 only: 1600 x 1280 @75Hz, Digital Port Maximum Input Resolution 1280X1024, 75Hz
Peripherals PSPS/2 keyboard, PS/2 mouse, IntelliMouse (PS/2 only), IBM Scrollpoint, Logitech Mouseman+, Logitech Marble Plus, Logitech Marble FX and Kensington Expert mouse
Other devices: VT100 serial-based devices
Approved Agency EN55022 Class A,EN55024,EN6200-3-2,EN6100-3-3,FCC15
Class A, VCCI Class A, IEC950,EN60950,UL 1950 third edition, CSA C22.2 No.950
