DVI-D 2x1 Switch with RS-232 Control

DV-SW2S

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100
smartavi_madeinusa

The DV-SW2 is a cross-platform DVI-D switch capable of sharing one DVI-D Monitor between two computers, PC or Mac. View two computers equipped with DVI-D on a single screen, saving money and desktop space.

Applications

  • Home Theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios

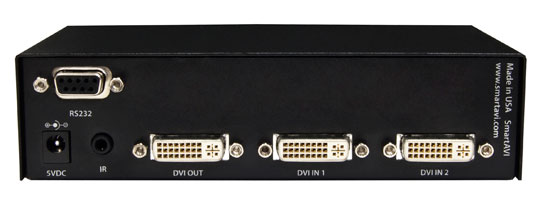

product

Features

  • Supports Mac, PC. Linux and Sun DVI-D
  • Supports High Resolution 1920x1200 60 Hz WUXGA
  • Uses universal DVI Single Link connectors
  • Zero pixel loss with TMDS signal correction
  • Output DVI up to 20 feet
  • Front panel switch with LED indicator
  • Saves space on your desktop

diagram

SmartAVI DV-SW2 Specfications

Mechanical
Height 1.87 in. (3.81 cm)
Width 10.5 in. (21.84 cm.)
Depth 6 in. (13.71 cm.)
Weight5 lbs.
FormatDVI-D Single Line
Maximum Pixel Clock165 MHz
Input Interface (TX)(2) DVI-D 29-pin (female)
Output Interface (RX) (1) DVI-D 29-pin (female)
ResolutionUp to 1920x1200 @60Hz
Input/Output Cable LengthUp to 20 feet
ControlRS-232, IR, and Front Panel
PowerExternal 5VDC2A
UPC / EAN Barcode icon
UPC 813280017145
EAN 0813280017145
