8-Port DVI-I Dual Link Switch with Audio
DV-SW8-P-S
Save $110.17
The DV-SW8-P is a dedicated multi-platform switch capable of managing up to 8 different computers through a single monitor and a set of speakers. The video connectors on the unit are DVI-I, which allows support for HDMI and VGA using inexpensive passive adapters or cables. When using a DVI or an HDMI monitor, computers can be a mix of either DVI or HDMI. When utilizing a VGA monitor, all computers must have a VGA/Analog video connection.
The C supports resolutions of up to 2560 x 1600 @ 60 Hz with zero pixel loss from TMDS signal correction. Any external device or program supporting RS-232 can control the DV-SW8-P. The DV-SW8-P uses a very simple protocol, enabling easy integration with the RS-232 control devices.
The DV-SW8-P is great for Server Collocation, Digital Signage, Education, Airports, Dealer Rooms, Control Rooms, Audio/Visual Presentations, Shopping Centers, Hotels/Resorts.
SmartAVI DV-SW8-P Features:
- DVI-I Dual Link Video Connectors; can mix DVI Dual-Link, DVI Single-Link and VGA Computers
- HDMI and VGA support using inexpensive passive adapters or cables
- Supports all major Operating Systems like Windows, Mac, Linux, Sun, Unix, DOS, etc.
- Supports resolutions up to 2560x1600 @ 60Hz
- Zero pixel loss with TMDS signal correction
- Rack mountable in a standard 19 inch rack
- Flash upgradeable firmware
- Stereo Audio support
- Front panel keys for manual port selection
- RS-232 for remote control

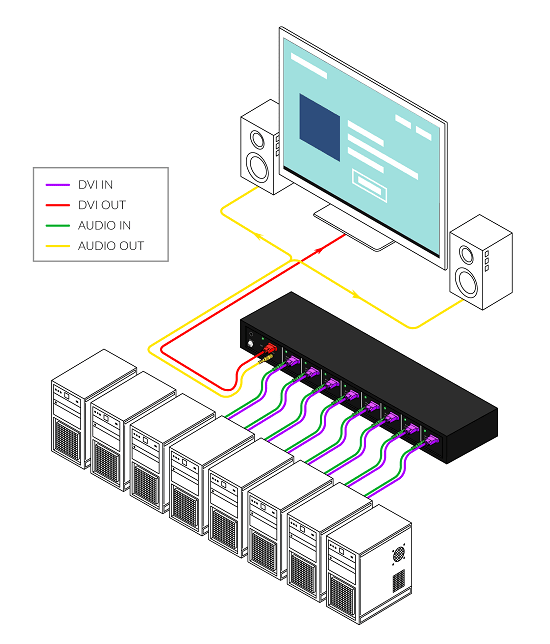

SmartAVI DV-SW8-P Application Diagram
SmartAVI DV-SW8-P-S System Includes:
- DV-SW8-P: 8 Port DVI-I Audio Video Switch with Serial Control
- PS12VDC3A: 12V DC 3A (minimum) power adapter with center-pin positive polarity.
- PS12VD2A-WLLMNT: Mounting kit
SmartAVI DV-SW8-P Specifications:
| Video | ||
| Forat | DVI Dual Link; DVI Single-Link; VGA | |
| Maximum Pixel Clock | 165 MHz | |
| Input Interface | (8) DVI-I 29-pin | |
| Output Interface | (1) DVI-I 29-pin | |
| Resolution | DVI Dual-Link: 2560 x 1600; DVI Single-Link: 1920 x 1200; VGA: 1920 x 1080 | |
| Color Mode | 24-bit | |
| DDC | 5 volts p-p (TTL) | |
| Input Equalization | Automatic | |
| Input Cable Length | Up to 20 ft. | |
| Output Cable Length | Up to 20 ft. | |
| Data Rate | 1.65 Gbps per color | |
| Console Monitors | Supports both digital and analog monitors | |
| AUDIO | ||
| Input Interface | (8) 3.5 mm Stereo Audio | |
| Output Interface | (1) 3.5 mm Stereo Audio | |
| Impedance | 600 Ohm | |
| Frequency Response | 20 Hz to 20 kHz | |
| Nominal Level | 0-1.0 V | |
| Common Mode | Rejection at 60 dB | |
| SOFTWARE COMPATIBILITY | ||
| Operatng Systems | Operates with virtually any OS including Windows, DOS, Linux, Unix, Sun, Mac, etc. | |
| CONTROL | ||
| Front Panel | Push Buttons with LED Indicators | |
| RS-232 | Via Control @ 9600 bps | |
| OTHER | ||
| Power | External 100-240 VAC/ 12VDC3A @ 36W | |
| Weight | 6.3 lbs | |
| Approvals | UL, CE, ROHS Compliant | |
| Operating Temperature | +32 to +104°F (0 to +40°C) | |
| Storage Temperature | -4 to 140°F (-20 to +60°C) | |
| Humidity | Up to 80% (No Condensation) |
The DV-SW8-P-S is the direct replacement for the DV-SW8S
