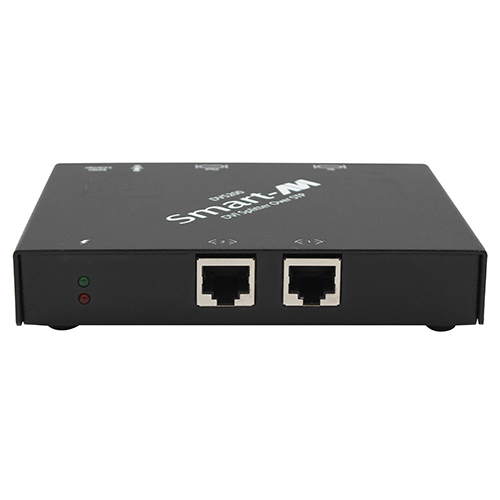

SmartAVI 2 Port DVI-D CAT6 STP Extender

DVS-200S

$299.00$232.99
Save $66.01
FREE Shipping on orders over $100

The SmartAVI DVS200 is a 2 Port DVI-D CAT6 STP Extender which extends DVI-D signals to 2 remote locations within 220ft with CAT6 STP cables.

Please Note: This extender requires at least one receiver unit Part Number DVX-RX200S.

Applications for the DVS200 include:

  • Call Centers (co-locate user's computers).
  • Industrial (protection against pollution).
  • Information Terminals & Kiosks.
  • Airports (air traffic control, passenger information systems).

SmartAVI DVS200 Features:

  • Local DVI output.
  • Top Image Quality at all Resolutions.
  • Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) on all distances up to the maximum distance.
  • User selectable: DCC-Information used from the remotely located monitor or from an internal DDC table
  • Distances: 220 ft regular STP CAT5e or STP CAT6.
  • Compatible with all operating systems.
  • Rack Mount options (19in.): Mount up to 4 devices in a 19in./1U rack mount kit. This saves expensive rack space.
  • MAC and PC versions available.

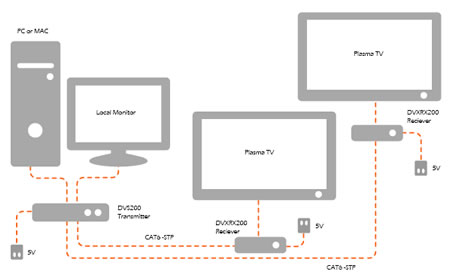

SmartAVI DVS200 DVI Extender Application Diagram
SmartAVI DVS200 DVI Extender Application Diagram

SmartAVI DVS200 Specifications:

Power Supply Universal Switch mode PSU (90-240V Input) 5VDC
Video Interface DVI
Resolution Up to 1920 x 1200 @ 60 Hz
Input Interface DVI-D (Single Link)
Upgradeable Onboard Flash for DDC
UPC / EAN Barcode icon
UPC 813280017350
EAN 0813280017350
Question: We are trouble shooting an installation using the DVS-200 and DVX-RX200. If I order both for trouble shooting, can I return the unit that I don't need.
Answer: Thank you for your inquiry. We do accept returns on products ordered from KVM Switches Online under most circumstances with an RMA request. However, manufacturers typically charge a restocking fee of 20% and shipping charges are generally non-refundable.

You can see the details of our return policy here: https://www.kvm-switches-online.com/info.html#Return Policy.
