SmartAVI DVI Extender, Transmitter Unit


Save $88.09
FREE Shipping on orders over $100

The SmartAVI DVS400 is a transmitter for extending DVI over CAT5 cable.  This DVI extender extends any DVI-I signal up to 220ft with a single CAT5 cable, while retaining a perfectly clear, crisp image of up to 1600 x 1200 resolution.

Please Note: This extender requires at least one receiver unit Part Number DVX-RX200S.

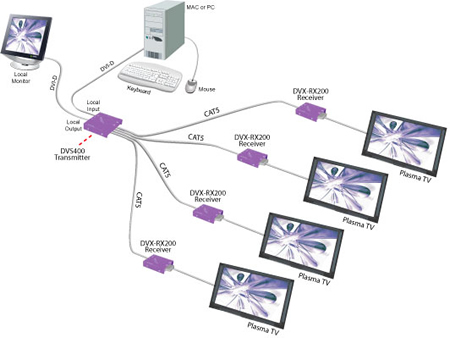

SmartAVI DVI Extender Application Diagram
SmartAVI DVI Extender Application Diagram

SmartAVI DVS400 Features:

  • Local DVI output.
  • Top image quality at all resolutions.
  • Video resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) on all distances up to the maximum distance.
  • User selectable: DCC-Information used from the remotely located Monitor, from the locally located Monitor or from an internal DDC table.
  • Distances: 220 ft regular STP CAT6.
  • Compatible with all operating systems.
  • Compatible with all major KVM switches.
  • Rack Mount options (19"): Mount up to 4 devices in a 19"/1U rack mount kit
  • MAC and PC versions available

SmartAVI DVS400 Specifications:

Video DVI
Input DVI-D (Single link)
Resolution Up to 1920 x 1200 @ 60H
Power Supply Universal Switchmode PSU (90-240V Input) 5VDC
Upgradeable Onboard Flash for DDC
UPC / EAN Barcode icon
UPC 813280017374
EAN 0813280017374
