SmartAVI 8 Port DVI-D Splitter


Save $154.32
FREE Shipping on orders over $100

The SmartAVI DVS8P is an 8 port DVI-D Splitter which allows you to view any DVI-D source on up to 8 displays at the same time.

Applications for the DVS8P include:

  • Test Bench Facilities
  • Data Center
  • Presentations
  • Help Desks
  • Server Rooms
  • Industrial Floors

SmartAVI  DVS8P Features:

  • Control up to 8 DVI-D monitors/flat panel displays to display the same video output source from a single PC.
  • Use PanelLink digital technology.
  • Supports high-resolution dislplay up to UXGA (25-165MHz).
  • Can be cascaded.
  • Compliant with the specification of DVI 1.0.
  • Simultaneous monitor display.
  • Plug-and-play, No extra software needed.
  • All lower resolutions operate up to 75 Hz vertical refresh Mounting Brackets and Rack-Mount Kits available.
  • Includes: [DVS8P, (CCDVIMM06), and (CCPWR06US) or (CCPWR06EU)]

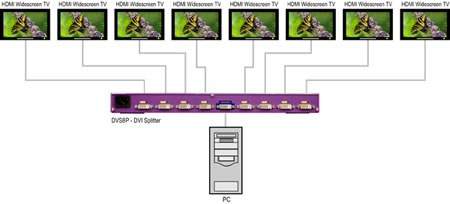

SmartAVI DVS8P DVI-D Splitter Application Diagram
SmartAVI DVS8P DVI-D Splitter Application Diagram

SmartAVI DVS8P Specifications:

Height 1.6 in. (42 mm.)
Width 7.3 in. (185 mm.)
Depth 17.3 (440 mm.)
Weight 5.5 lbs. (2.5 kg.)
Housing Metal
Power Adapter (min) AC 100V~240V/50~60Hz
Operating Temperature 32°
Video Input 1 DVI Female
Video Output 8 DVI Female
Video Amplifier Bandwidth 1.65 Gbps
Max. Resolution 1920 x 1200 60 Hz
Input Video Signal 1.2 volts p-p
Cable Distance to Monitor 33 ft. (10 m.) max
Input DDC Signal 5 volts p-p (TTL)
Single Link Range 1920 x 1200
Signal Type Standard DVI Signal
UPC / EAN Barcode icon
UPC 813280021098
EAN 0813280021098
