DVI-D/RS232/USB/AUDIO CAT6 Receiver

DVX-MURX

$350.00

Discontinued
For upgrade or replacement options: Contact Us

smartavi_madeinusa

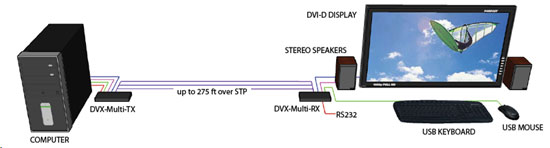

SmartAVI's DVX-Multi extends DVI-D, RS232, USB 1.1 and Audio up to 275 feet over 3 STP Cables.

*This is the Receiver only.

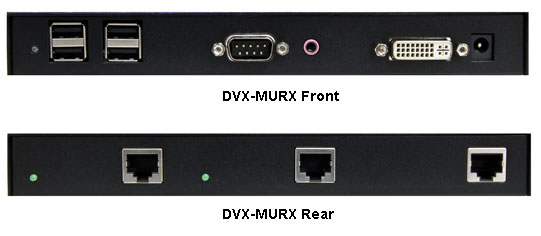

product views

Applications

  • Medical Applications
  • Industrail Work Areas
  • Home theater Integration
  • Digital Signage Deployment
  • Information Kiosks/Displays
  • Film/Recording Studios

Features

  • Top image quality at all resolutions
  • Resolutions up to 1920 x 1200 at 60Hz (1280 x 1024 at 75Hz)
  • Distance: 275 feet with 3 CAT6 STP cables
  • Compatible with all operating systems
  • Compatible with all major KVM switches
  • Rack mount options (19)
  • Supports USB 1.1 keyboard and mouse
  • Uses easy-to-install, inexpensive pair cable
  • Data recovery for digital video
  • Fully-compliant with USB 1.1 specifications
  • Supports 1.5 and 12Mbps data rates
  • External power adaptors for transmitter and receiver units
  • Fully-transparent (does not use any emulation)
  • Plug-and-play

table

SmartAVI DVX-MURX Receiver Specifications

Mechanical
Height 1 in. (2.54 cm)
Width 7.5 in. (19.05 cm.)
Depth 3.5 in. (8.89 cm.)
Weight1 lbs.
Video FormatDVI-D Single Link
Video Input Interface(1) DVI-D 29-pin-female
Video Output Interface(1) DVI-D 29-pin female
ResolutionUp to 1920x1200 @ 60Hz
DDC 5 Volts p-p (TTL)
Audio Frequency 20 Hz to 20 KHz
Audio Impedance600 ohm
UPC / EAN Barcode icon
UPC 813280021173
EAN 0813280021173
