The SmartAVI DVX-PLUS extends USB 1.1 and DVI-D up to 275ft. using standard twisted pair cable.
SmartAVI DVX-PLUS Features:
- Extends USB and DVI signals up to 275ft from the computer.
- Uses easy to install, inexpensive twisted pair cable.
- Data recovery for digital video.
- Supports 1920x1200 digital video resolution.
- Fully compliant with USB 1.1 specifications.
- Supports 1.5 and 12 Mbps data rates.
- Compatible with all operating systems.
- External power adapter for transmitter and receiver unit.
- Fully transparent (does not use any emulation).
- Plug and play.
Applications for the DVX-PLUS DVI Extender include:
- Presentations - DVX Plus enhances any presentation from commercial products to corporate financial data. It can be used in show rooms, board rooms, trade shows and window displays.
- Data Broadcasting - Data such as news, stock prices, sports results, and flight information can be broadcast in real time to various monitors and/or speakers.
- Learning and Training - DVX-PLUS can be used in educational presentations, in schools and in other training facilities.
- Additional Applications - DVX Plus can also be used in the following applications; Security, PC Networking, Conference Center Systems, Point of Sale, Camera Surveillance, Control Room Systems, and many more.

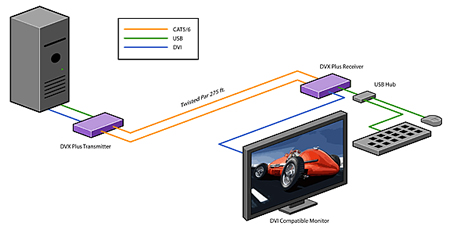

SmartAVI DVX-Plus Application Diagram
SmartAVI DVX-PLUS Specifications:
|Single Link Range||480P,720i/p, 1080i/p|
|Video Data Rate||1.65 Gbps|
|Resolution||1920 x 1200 @ 60 Hz, Resolution up to 1280 x 1024 min. 75H|
|Power Supply||Universal Switch mode PSU (90-240V Input) 5VDC 1A|
|USB Max Data Rate||12Mbps|
|USB Compatibility||1.0 and 1.1|
