SmartAVI DVI-D / Sound and RS232 CAT6 STP Extender System

DVX-PROS

$499.00

Discontinued
For upgrade or replacement options: Contact Us

The SmartAVI DVX-PRO is a DVI-D / sound and RS232 CAT6 STP Extender system which extends any DVI-D signal, full duplex RS232 and stereo sound up to 250ft with Cat5 cable.

Applications for the DVX-PRO include:

  • Kiosks: The maintenance of kiosks can be greatly reduced through the ability to support stations in single PC closet.
  • Savings Savings: Saves on equipment costs, physical space and utilities expense.
  • Productivity: Increases productivity by facilitating testing and performance evaluation of software and equipment, on multiple servers, from a single keyboard mouse and monitor station.
  • Multimedia: Can be used in multimedia presentations, where the information is broadcasted to various KVM
  • Additionally: Provides remote access of the PC with DVI-D, keyboard, mouse and sound.

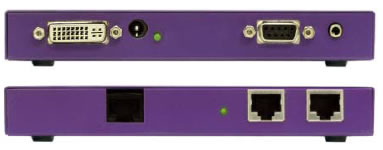

SmartAVI DVX-PRO Transmitter and Receiver Back Views
SmartAVI DVX-PRO Transmitter and Receiver Back Views

SmartAVI DVX-PRO Features:

  • Top Image Quality at all Resolutions.
  • Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz)on all distances up to the maximum distance.
  • User selectable: DCC-Information used from the remotely located Monitor, from the locally located Monitor or from an internal DDC Table.
  • Basic device to remotely locate Touch Screen and Sound.
  • Full duplex RS232 up to 150kbps.
  • Maximum Screen Resolution on all distances: 250 ft w/ STP Cat5e.
  • Compatible with all operating systems.
  • Compatible with all major Touch Screen and Tablet.
  • Rack Mount options 19
  • Includes: [DVXP-TX200, DVXP-RX200, (CCDVIMM06), and 2x (PS5VD1A)]

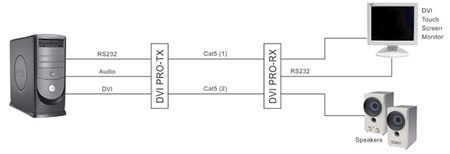

SmartAVI DVX-PRO DVI Extender System Application Diagram
SmartAVI DVX-PRO DVI Extender System Application Diagram

SmartAVI DVX-PRO Specifications:

Mechanical Transmitter Receiver
Height 0.83 in. (20.96 mm.) 0.83 in. (20.96 mm.)
Width 6.25 in. (158.75 mm.) 6.25 in. (158.75 mm.)
Depth 6.13 in. (155.58 mm.) 6.13 in. (155.58 mm.)
Weight 0.4 lb. (0.2 kg.) 0.4 lb. (0.2 kg.)
RS232 DB9 Female DB9 Female
Video
Connector DVI-D female DVI-D female
Protocol Full duplex, transparent to all baud rate
Resolution 1920x1200 @ 60Hz
Audio
Signal Type Stereo Audio
Bandwidth 15Mhz, 0dB
Impedance 100 Ohm
Connector 3.5 mini jack, female
UPC / EAN Barcode icon
UPC 813280021203
EAN 0813280021203
