DVI-D/MAC CAT6 STP Transmitter

DVX-TX200MS

$199.00$155.06
Save $43.94
FREE Shipping on orders over $100
smartavi_madeinusa

The DVX-TX200MS is the perfect solution for extending DVI-D signals to a remote location up to 225 feet away over Cat6 23 AWG STP cabling. It is the ideal way to isolate a workstation computer into one location and a console in another. It is fully compatible with MAC, and LINUX DVI-D single link standards.
*Transmitter Only.

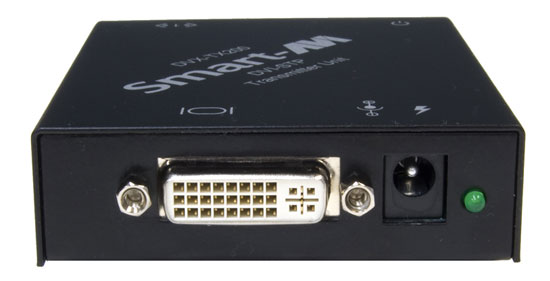

prodcut

Applications

  • Perfect Image Quality at all Resolutions
  • Call Centers(co-locate user's computers)
  • Industrial (protection against pollution)
  • Information Terminals & Kiosks.
  • Airports (air traffic control, passenger information systems).
  • Medical - using computer tomographs generates strong magnetic fields, which make it impossible to use monitors.

Features

  • Top Image Quality at all Resolutions.
  • Video Resolutions up to 1920 x 1200 @ 60Hz (1280 x 1024 @ 75Hz) up to the maximum distance.
  • User Selectable: DCC-Information MAC or PC
  • Distances: 225 ft with Cat6 23AWG STP cable.
  • Compatible with all operating systems.
  • Compatible with all major KVM Switches.
  • Rack Mount options (19)
  • Supports MAC
  • No Degradation of Video Quality
  • LEDs Indicate Power and Loss of clock Signal
  • External Power Supplies
  • Silent Fanless Operation

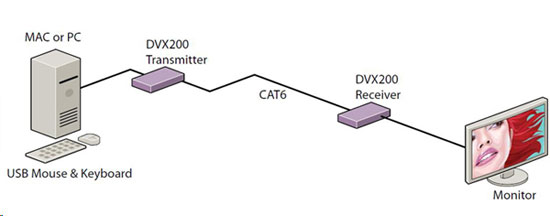

diagram

SmartAVI DVX-200 Transmitter Specifications

Mechanical
Height 1 in. (2.54 cm)
Width 3.68 in. (9.34 cm.)
Depth3 in. (7.62 cm.)
Weight0.20 lbs.
Video FormatDVI-D Single Link
Max Video Pixel Clock165 MHz
Video Input Interface(1) DVI-D 29-pin female
Video Output Interface(1) DVI-D 29-pin female
ResolutionUp to 1920x1200 @ 60Hz
DDC5 volts p-p (TTL)
PowerExternal 100-240 VAC/5VDC2A @ 10W
