SmartAVI Point to Point Multimode PS/2 KVM Fiber Extender System
DVX-2000S
The SmartAVI DVX2000 DVI-D Extender extends the distance between any computer supporting DVI-D and monitors or projectors up to 1200 ft. with fiber optics.

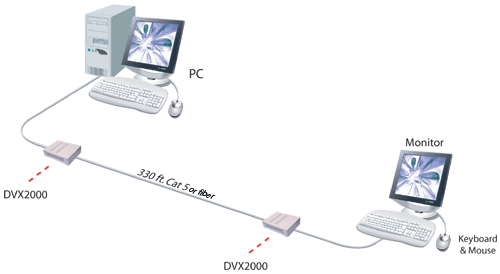

SmartAVI DVX2000 Diagram
SmartAVI DVI-D Extender DVX2000 Features and Benefits:
- Very high image quality at all resolutions
- Supports both VGA and the latest DVI video interfaces
- Supports mixed DVI and VGA operation
- Video resolutions--up to 1600 x 1200 @ 60Hz using CAT5 or Fiber Optic Cable
- Local Console Option (Dual Access)
- Transparent to USB 1.1
- No length restrictions for particular video resolutions
- Fiber optic extension uses only two fibers
- Compatible with all operating systems
- Compatible with all major KVM switches
- Rack Mount options (19"): Mount up to 3 devices in 19"/1U or up to 6 devices in 19"/1U or up to 6 devices in 19"/2U. This saves rack space.
SmartAVI DVI-D Extender DVX2000 Specifications:
| Mechanical | |
| Height | 1.7 in. (43 mm.) |
| Width | 5.8 in. (148 mm.) |
| Length | 6.7 in. (170 mm.) |
| Power Supply | Universal Switchmode PSU (90-240V Input) |
| KVM Access | Single/Dual KVM options |
| Connection Options | Multi-mode 50/125 50/125µ oder 62,5/125µ, SC-Connector Single-mode 9/125µ, SC-connector, Cat5/5e/6 |
| Resolution | 1600 x 1200 @ 60 Hz All lower resolutions operate up to 75 Hz vertical refresh |
| Keyboard | PS/2 Microsoft Compatible |
| Mouse | PS/2 Microsoft Compatible |
| Video Interface | XGA, SUN, DVI |
| Maximum Distance | 100 m (200 m) Cat5, 200 m (62, 5µ), 400 m (50µ), 10km (9µ) |
