SmartAVI Video, Audio, PS2 and RS-232 CAT5 Extender Transmitter

DXP16P-TXS

$699.00

Discontinued
For upgrade or replacement options: Contact Us

The SmartAVI DXP16P-TXS is a 3U Chassis that supports a combination of up to 16 transmitters and a redundant power supply. Transmitter and receiver cards are purchased separately.  This transmitter is part of the SmartAVI DX16P extender solution which allows you to consolidate multiple CPU's in one location while extending your reach using CAT5 cables.

SmartAVI DX16P Extender Solution Features:

  • Provides remote access of the PC with keyboard, mouse and monitor.
  • Uses single CAT-5 UTP cable to reduce installation costs
  • Users can be located up to 1000ft/200m away
  • Supports RS232 from 300 bps up to 38,400 bps
  • Caps Lock, Num Lock, and Scroll Lock are automatically saved and restored.
  • Supports full emulation and conversion on all PC/AT and PS/2 mice
  • Compatible with Windows, NT, OS/2, UNIX, Linux, and other operating systems
  • Supports computer monitors with resolution of up to 1600x1200
  • Offers adjustable cable compensation
  • Supports stereo audio
  • Allows for CPU to be securely away from workstations
  • Video automatic gain control system compensates for signal loss
  • 3U metal enclosure

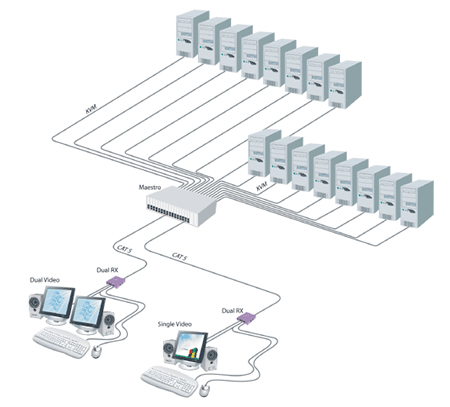

SmartAVI Desktop Extender Solutions Application Diagram
SmartAVI Desktop Extender Solutions Application Diagram

SmartAVI DX16P Extender Solution Specifications:

Audio
Bandwidth 15kHz
Signal level 0dB unbalanced
Input Impedance 10K ohms
Output Impedance 100 ohms
Connector 3.5mm stereo jack
System connection RJ45 connected to CAT-5 UTP
Power 240V/100V
Video
Signal Analog Signal: Red, Green, Blue 0.7 Vp-p/75 ohms positive
Resolution  1600x1200 (200MHz)
CPU Connection HD15 female for the video input and
output MINIDIN6 female for the
keyboard mouse jack stereo 3.5mm for
audio in and out
Compatibility
CPUs IBM PC
Keyboard, Mouse PS/2, Wheel Mouse
Sync TTL Compatible
RS232 Data up to 38,400bps
Software Independent
UPC / EAN Barcode icon
UPC 813280021302
EAN 0813280021302
