Temperature Sensor for PN / PE Series PDU

EA1140

$94.95

Discontinued
Recommended replacement: Aten EA1240
Alternative options: Contact Us

 For environmental monitoring and management, ATEN provides sensor probes that work in tandem with the Power Distribution Units, which enable you to get readings of temperature. Environmental conditions can be monitored with alarms according to customizable minimum/maximum thresholds set for temperature. *The Sensor is an optional accessory. You can use the ATEN PDU without environmental sensors. However, if you want to have complete energy management of your data center with the full use of ATEN solutions, a sensor installation is required.

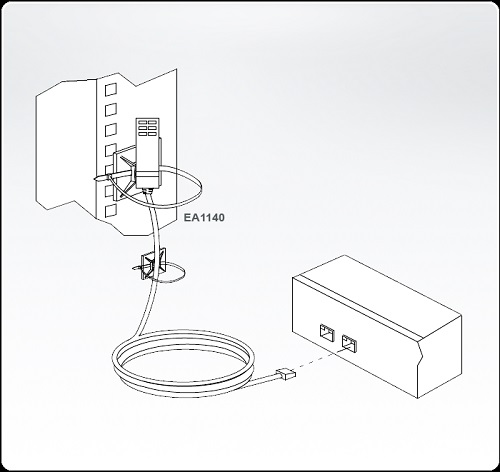

Diagram

diagram

Features:

  • Measurement range: 0 - 40°C
  • Measurement accuracy: +/- 1°C
  • Compact design - built in 10 feet (3 m) cable
  • High sensitivity
  • Easy operation



Specifications:

Connectors RJ-11 Male
Measurement
Range  0 - 40°C
Accuracy  +/- 1°C
Supple Voltage  5VDC (Max.)
Current Consumption 5mA max: (2mA avg.)
Environment
Operating Temp.   0 - 55°C
Storage Temp.   -20 - 70°C
 Humidity  < 95% RH
Physical Features
Housing Plastic 10 feet (3 m)
Weight 0.1 lb. (0.06 kg)
UPC / EAN Barcode icon
UPC 4710423775626
EAN 04710423775626
